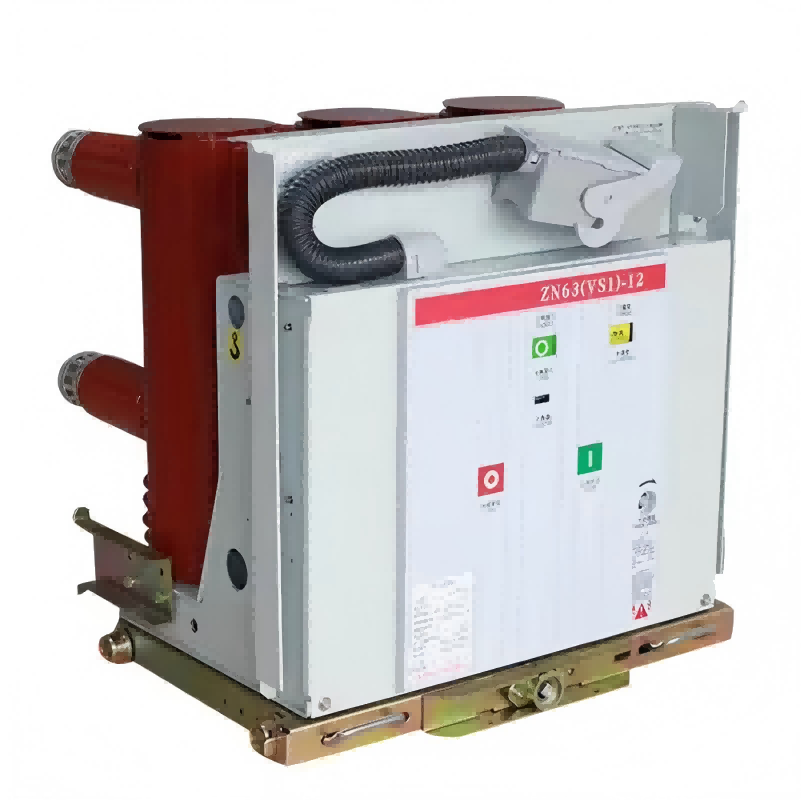

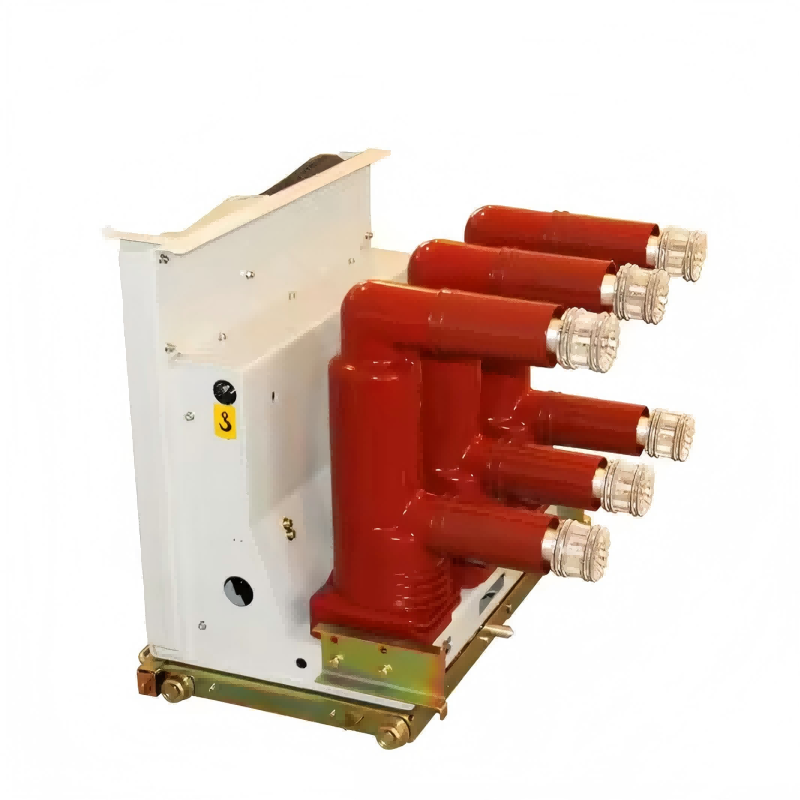

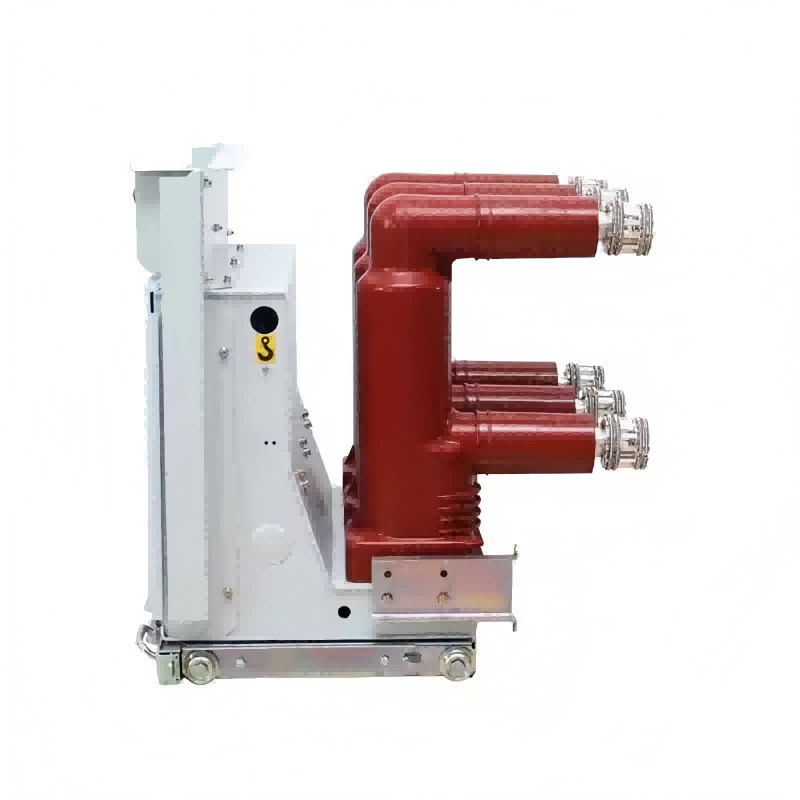

VS1 12kv/17.5kv 3pole Handcart Type High Voltage Vacuum Circuit Breaker

Lugao specializes in the production of indoor vacuum circuit breakers, boasting a comprehensive suite of advanced production lines. The VS1 12kV/17.5kV three-pole, trolley-mounted high-voltage vacuum circuit breaker is suitable for three-phase AC 50Hz indoor power distribution systems. It rapidly interrupts short-circuit currents, primarily protecting electrical equipment. The VS1 circuit breaker boasts a compact design and is easy to install, requiring only regular inspection of the contact wear.

Model:vs1-12

Send Inquiry

Product Description

The VS1-12 indoor high-voltage vacuum circuit breaker is a three-phase AC 50Hz, 24kV rated voltage indoor switchgear for power systems. It serves as a protection and control unit for power grid equipment and industrial and mining power equipment. It is suitable for applications requiring frequent operation at rated operating current or repeated short-circuit interruption.

The circuit breaker features an integrated operating mechanism and circuit breaker body, allowing it to be used as a fixed-mount unit or equipped with a dedicated propulsion mechanism to function as a trolley unit.

Operating Environment

• Ambient temperature: not higher than 40°C, not lower than -10°C (storage and transportation at -30°C permitted);

• Altitude: not higher than 1000m (if the altitude is increased, the rated insulation level will be increased accordingly);

• Relative humidity: daily average value not higher than 95%, daily average value of saturated vapor pressure not higher than 2.2kPa, monthly average value not higher than 1.8kPa;

• Seismic intensity: not higher than magnitude 8;

• Location free from fire, explosion, severe contamination, chemical corrosion, or severe vibration.
