Three Phase 200KVA 250KVA 400KVA Semi-finished Oil-immersed Distribution Transformer

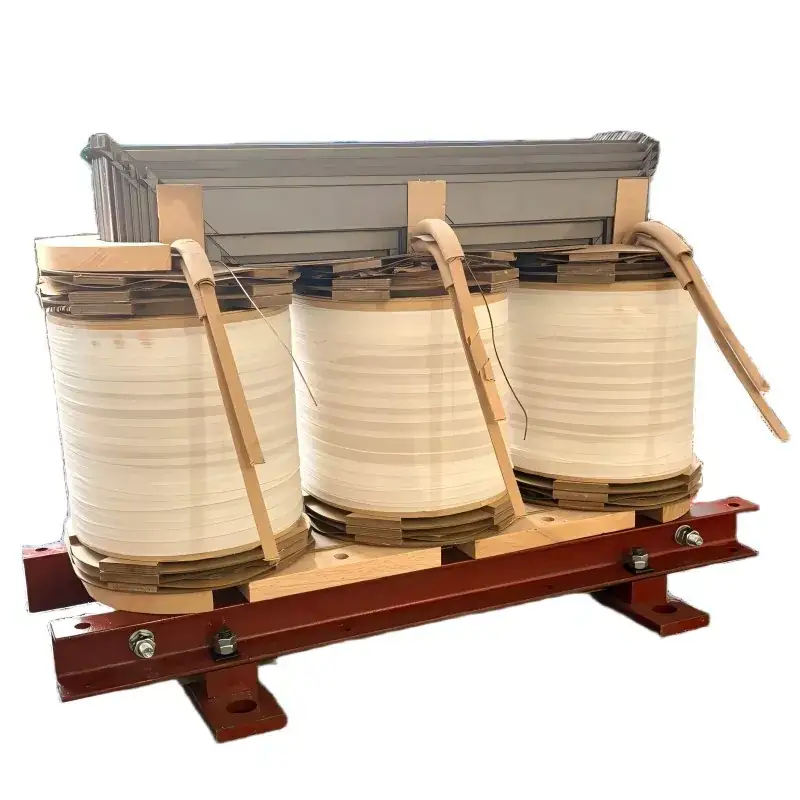

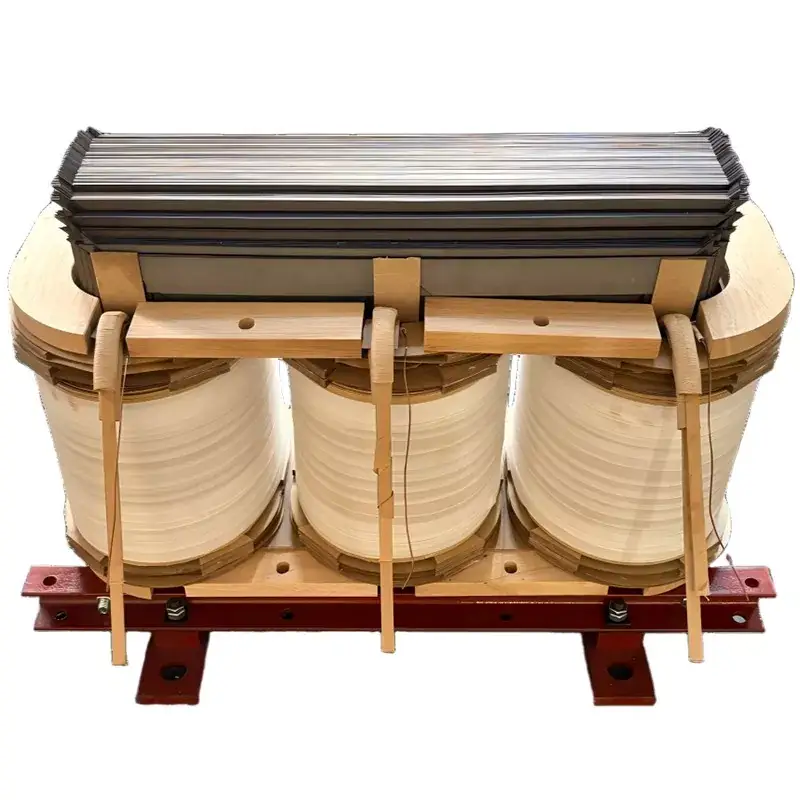

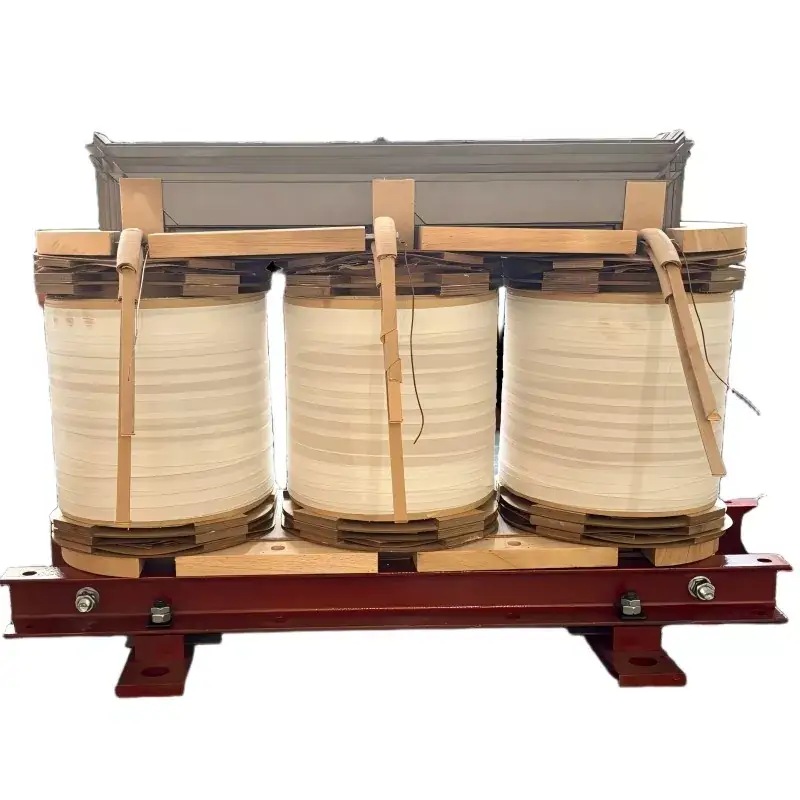

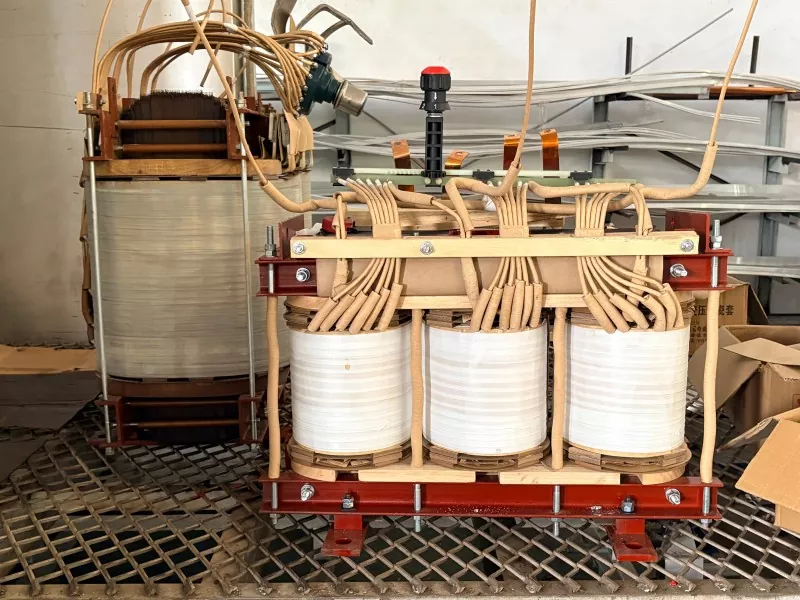

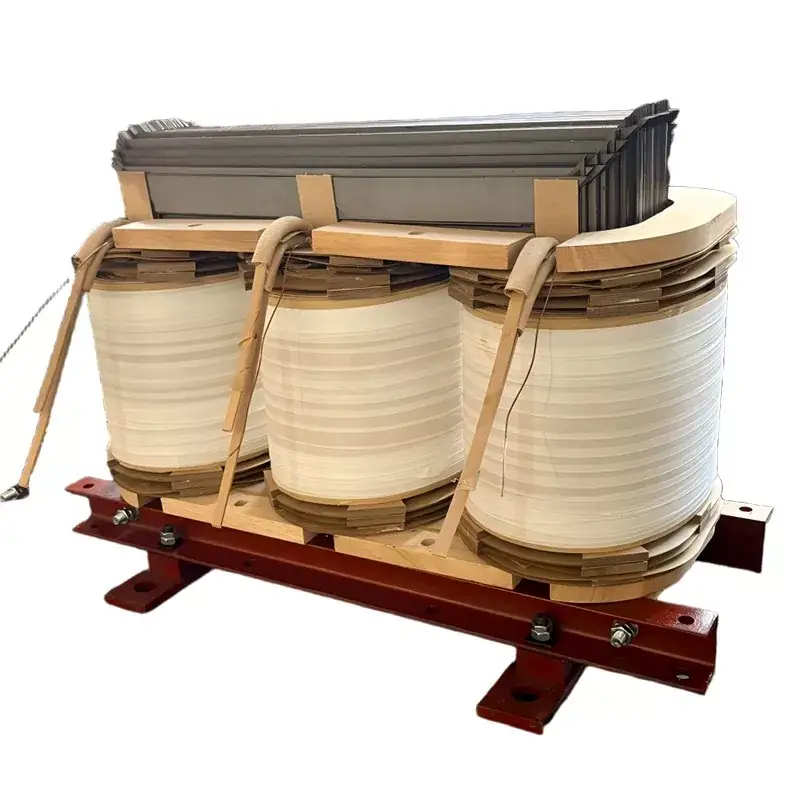

Lugao's Three Phase 200KVA 250KVA 400KVA Semi-finished Oil-immersed Distribution Transformers are designed for overseas manufacturers and transformer factories. The core and coil assemblies are prefabricated at Lugao's factory, and only the final casing assembly needs to be completed locally according to specific requirements. High-quality silicon steel sheets and oxygen-free copper are used for the materials, and aluminum materials can also be selected according to customer needs to ensure optimal electrical performance.

Product Advantages

1. Lugao adopts advanced design concepts in the industry and can provide OEM/ODM designs based on customers' specific tank dimensions and local climate conditions.

2. Lugao is equipped with professional production lines and testing laboratories to ensure that every production step is well-organized and all products fully comply with ISO and CE standards. Each device undergoes rigorous routine testing before shipment.

3. Standard export packaging is used, secured with reinforced steel or wooden frames to ensure safe lifting and handling.

4. Sufficient inventory ensures fast delivery. Standard specifications are completed within 25 days. Special customized orders are delivered within 35 days.

5. Semi-finished products allow for flexible final assembly locally, and Lugao provides installation technical guidance.

Operating Environment Conditions:

1. The standard design is suitable for areas with an altitude of ≤ 1000 meters. For use in special areas, please contact Lugao for special design.

2. The internal components of the transformer must be immersed in transformer mineral oil as required to ensure good cooling and insulation strength.

3. The equipment should be installed in an environment free from corrosive chemical gases, explosive dust, or severe mechanical vibrations.

4. The optimal ambient temperature is between -40℃ and +40℃. The daily temperature difference should not be too large.

Product Parameters

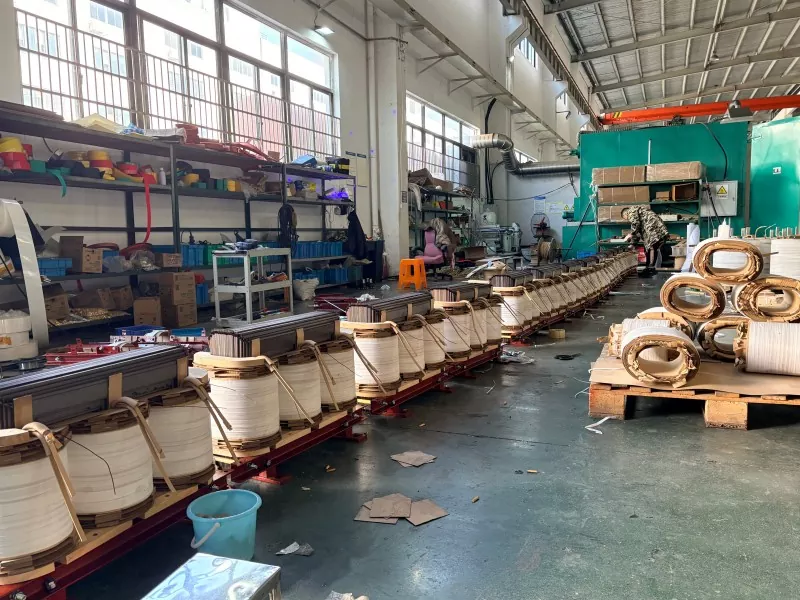

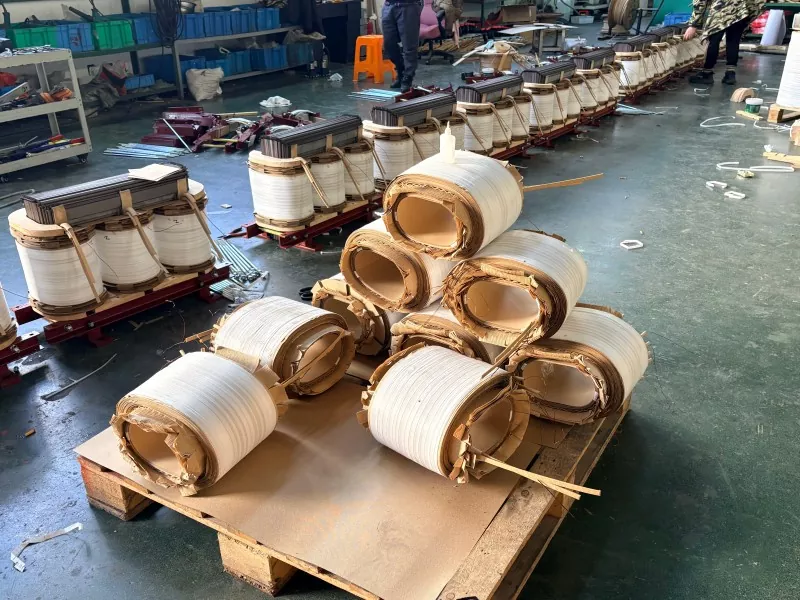

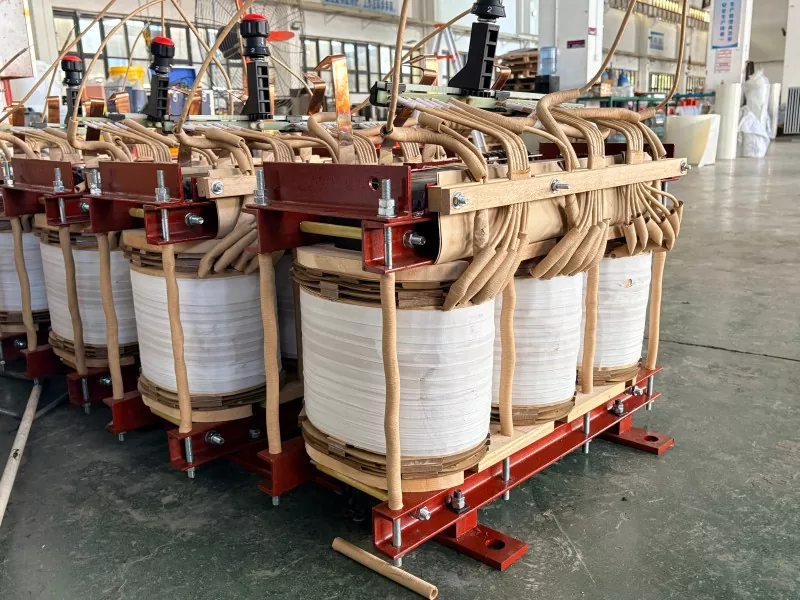

Factory Real-Photo:
