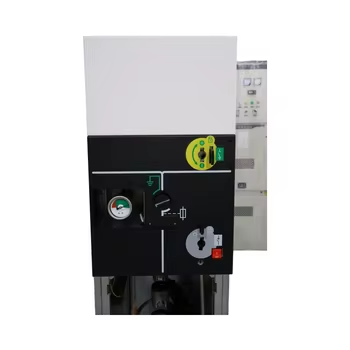

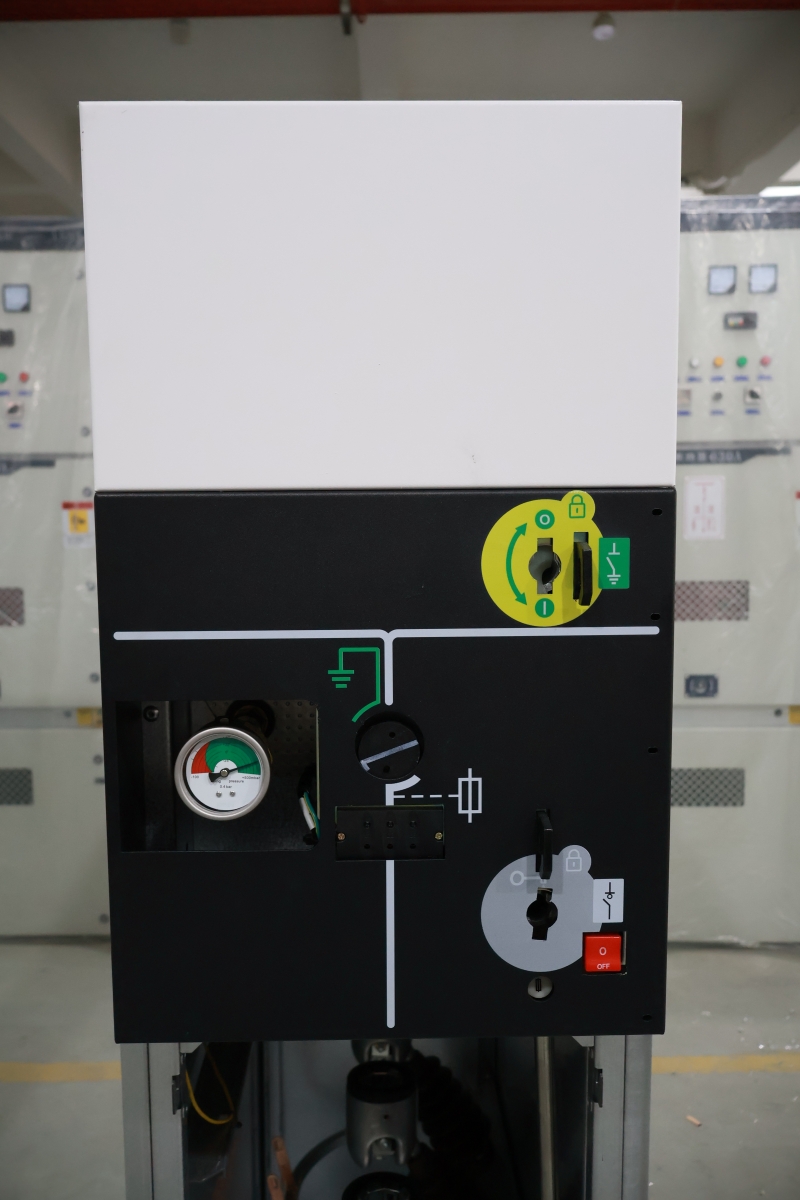

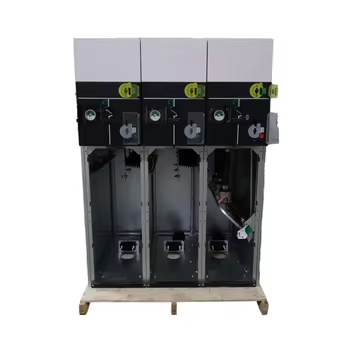

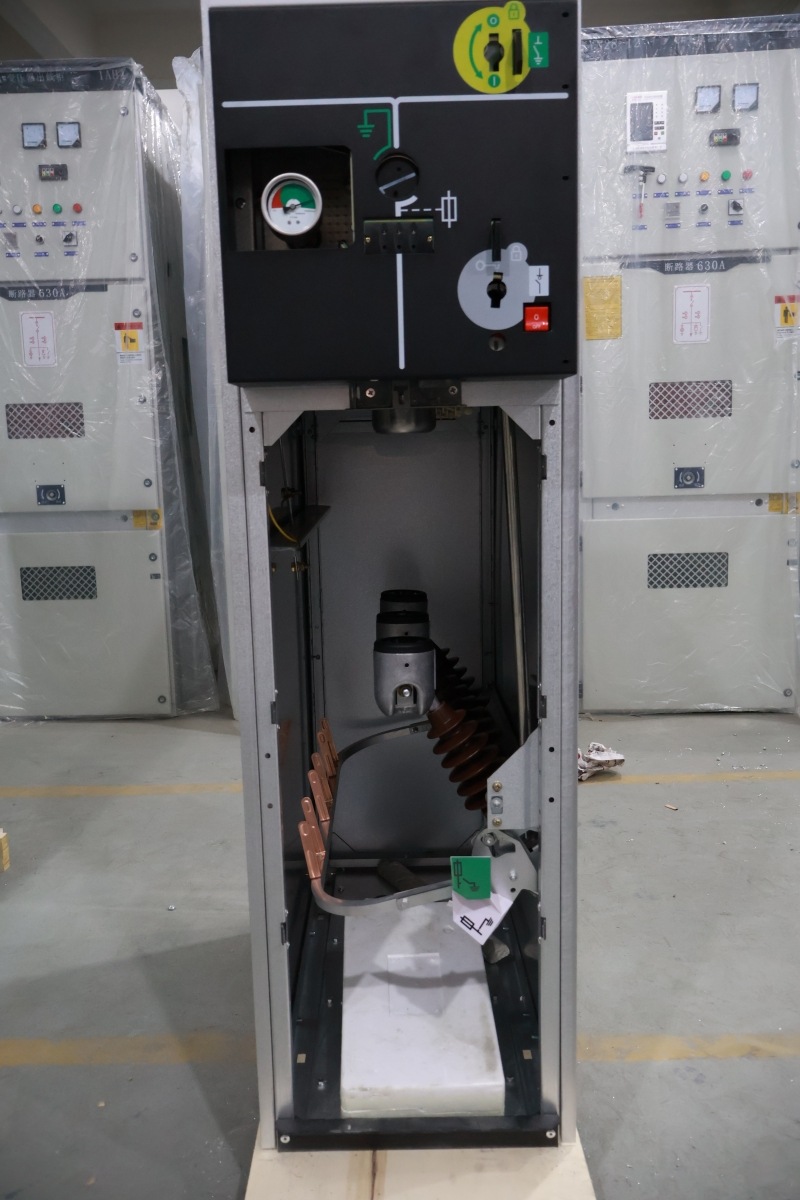

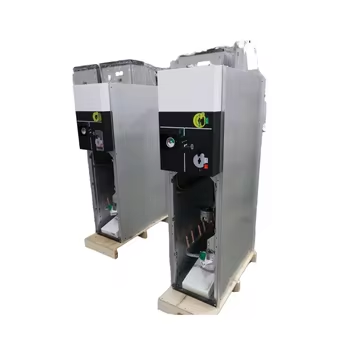

Sm6-24 ndoor Outdoor Air Insulation Sf6 Medium Voltage Ring Main Unit

Product Introduction：

LUGAO's SM6-24 ring main unit has been exported to many countries and has received unanimous praise.   Its manufacturing capabilities are already quite mature.   LUGAO has a professional production line to ensure that each product undergoes strict quality inspection.

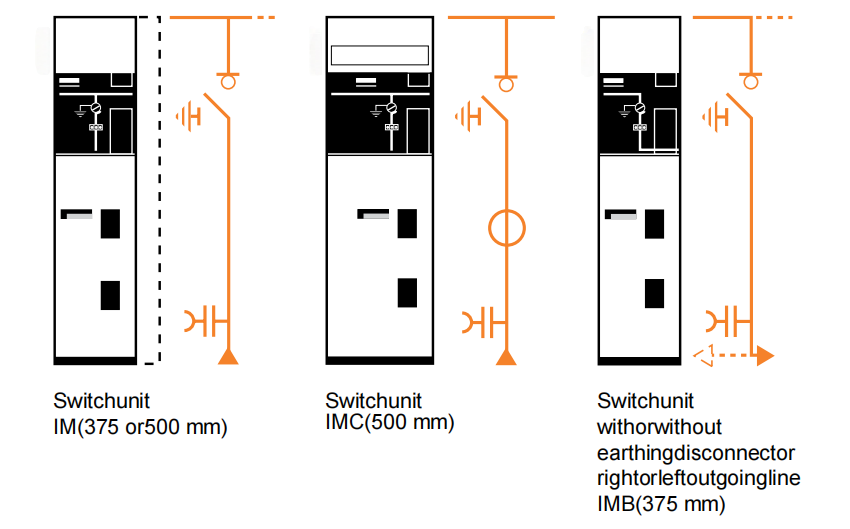

SM6-24 can be flexibly transformed into Switch and fuse protection cubicles, SF6 circuit breaker cubicles, Vacuum type circuit breaker cubicles and Contactor cubicles through modular design.

The busbars of all cabinet types are located on the same horizontal plane, which is convenient for connecting the equipment in the cabinet.  The cabinet is installed in a shell filled with SF6 gas.  The model of the circuit breaker can be flexibly selected, and the operating mechanism and low-voltage components can be configured.

sm6-24 advantages:

1.  Modular design is light and flexible, the cabinet width can be adjusted, and a variety of cabinet combinations can be supported to adapt to different conditions

2.  Intelligent control and remote monitoring can be performed, greatly reducing the cost of operation and maintenance

3.  It has a very high protection level and can operate stably both indoors and outdoors

4.  Excellent arc extinguishing ability, improves operational safety, and reduces risks such as fire

5.  Optimizes the floor space and improves space utilization

Size

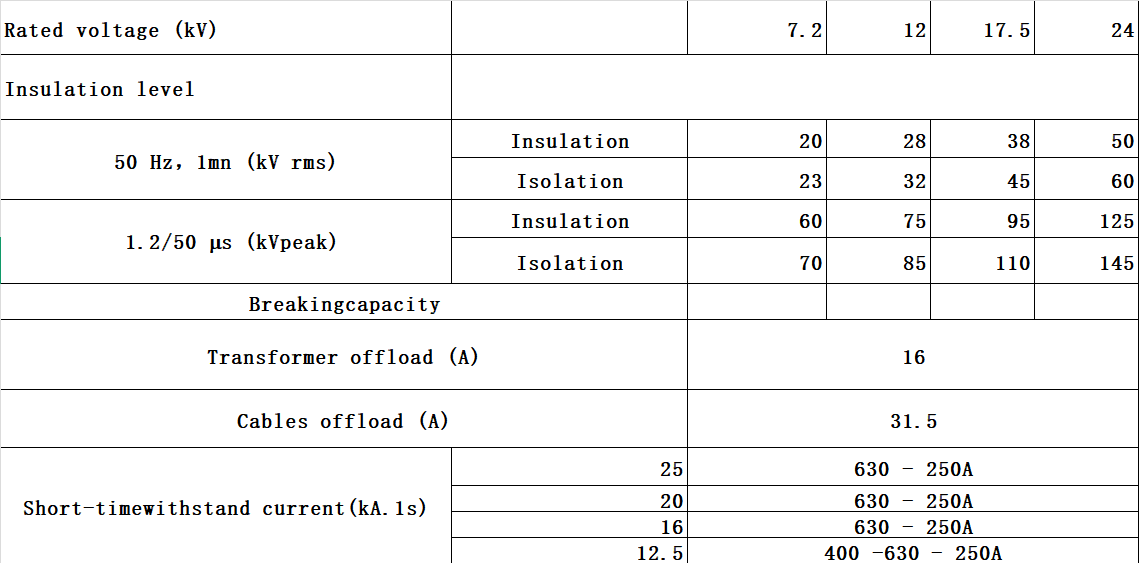

Specification

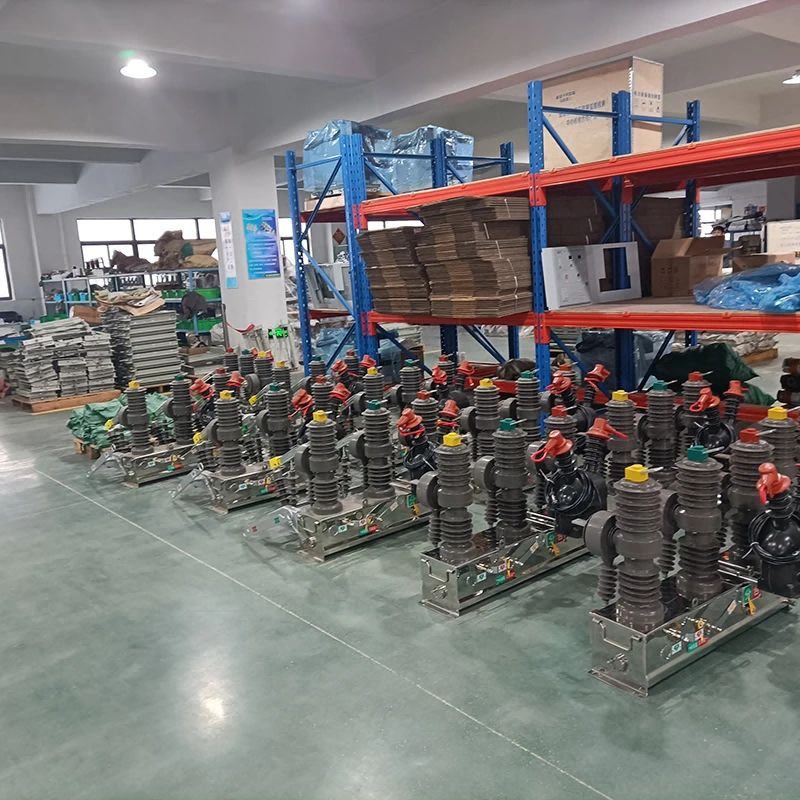

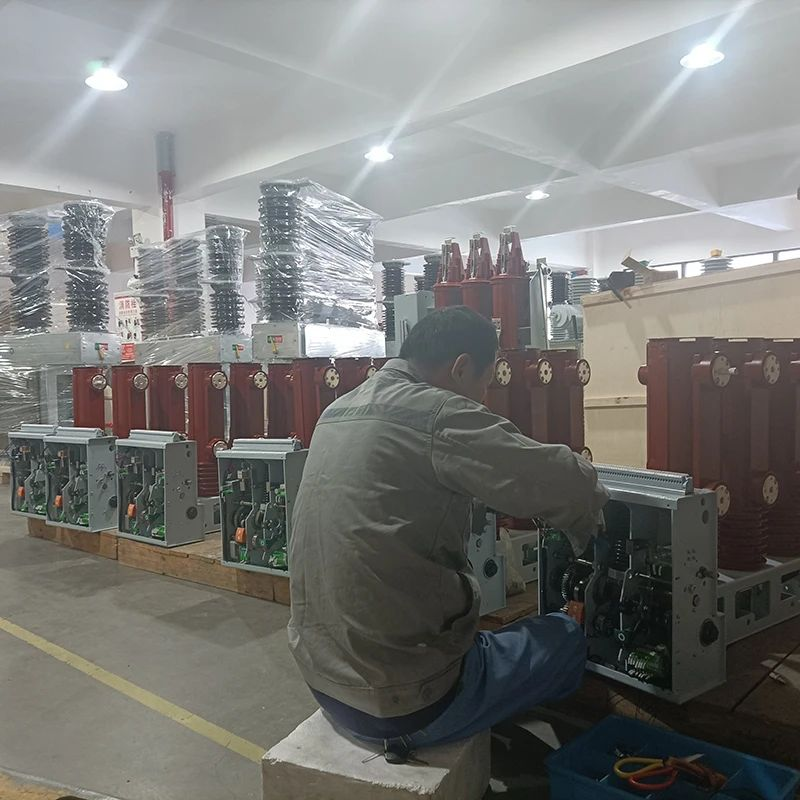

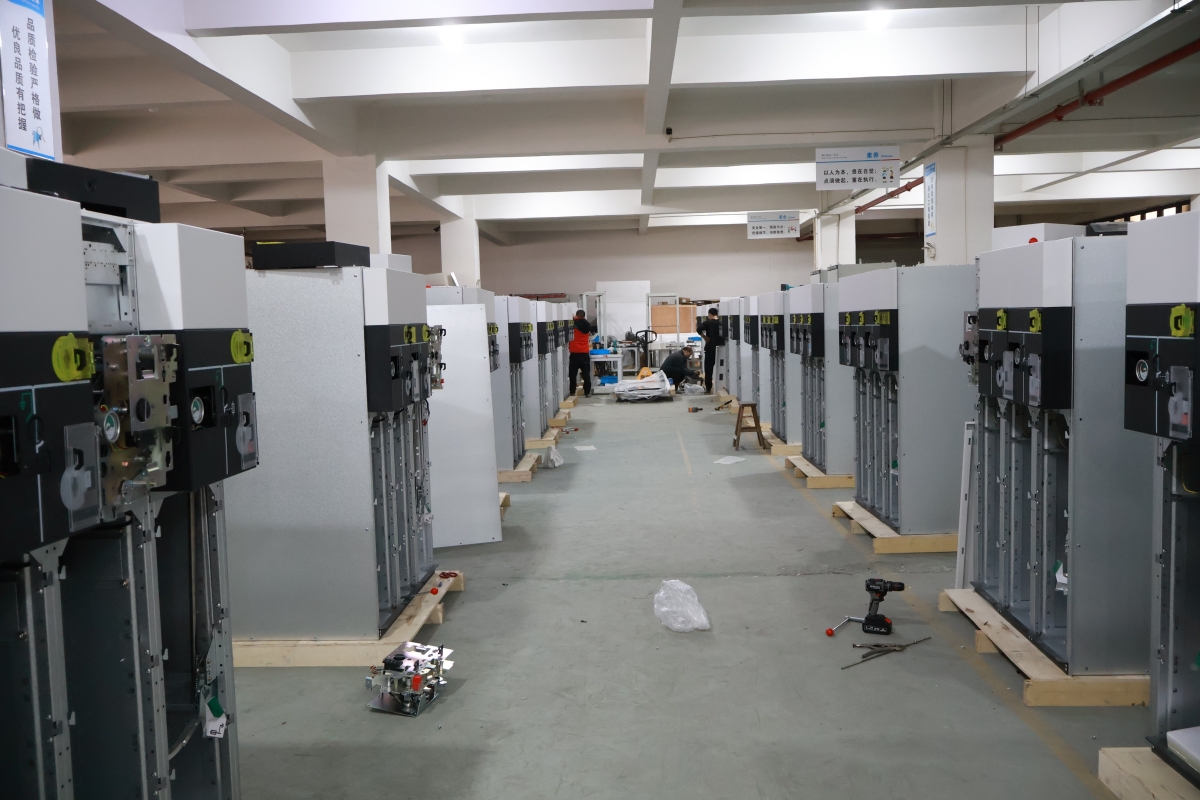

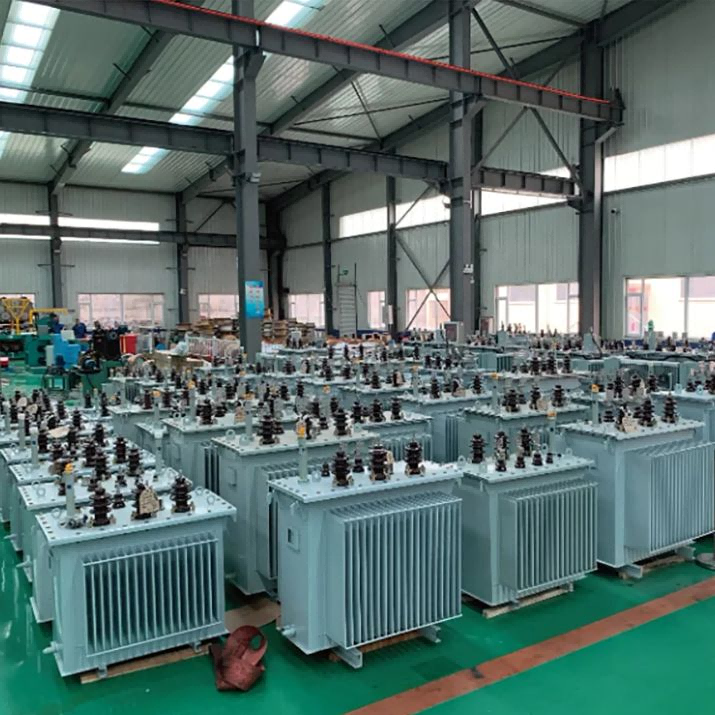

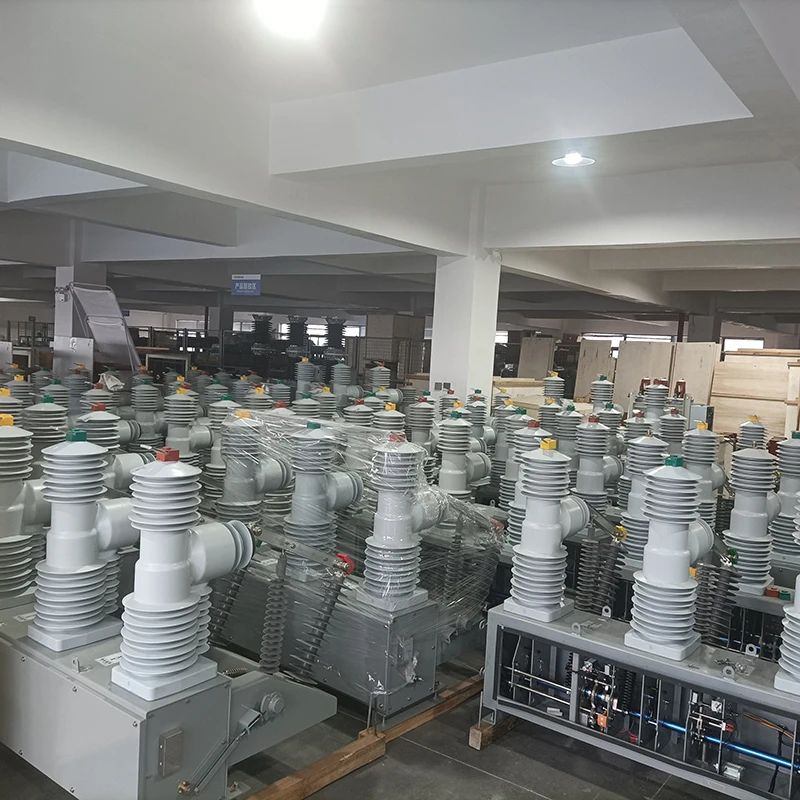

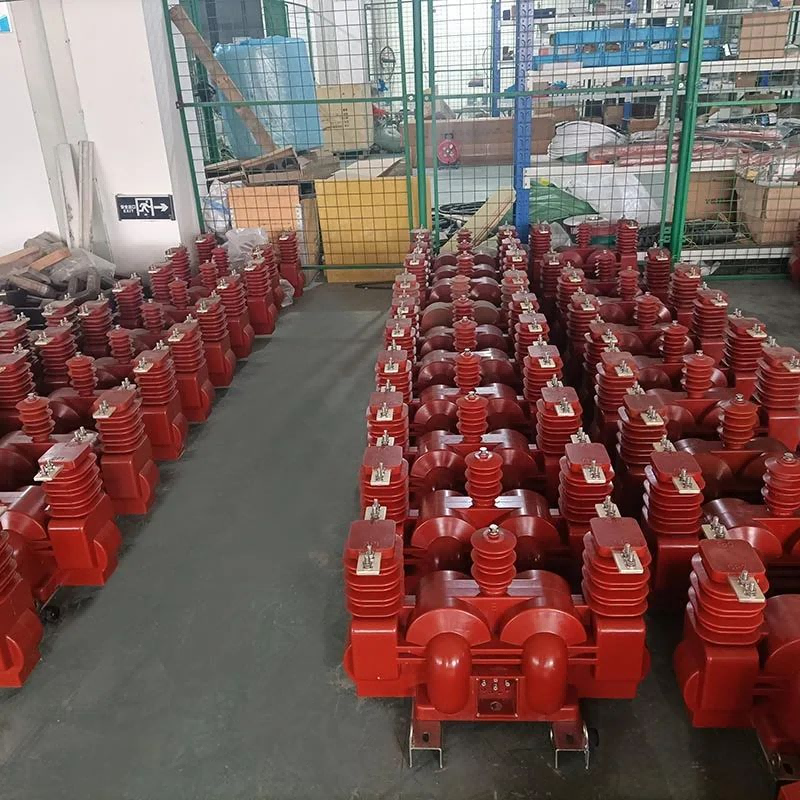

Factory shooting

Package
