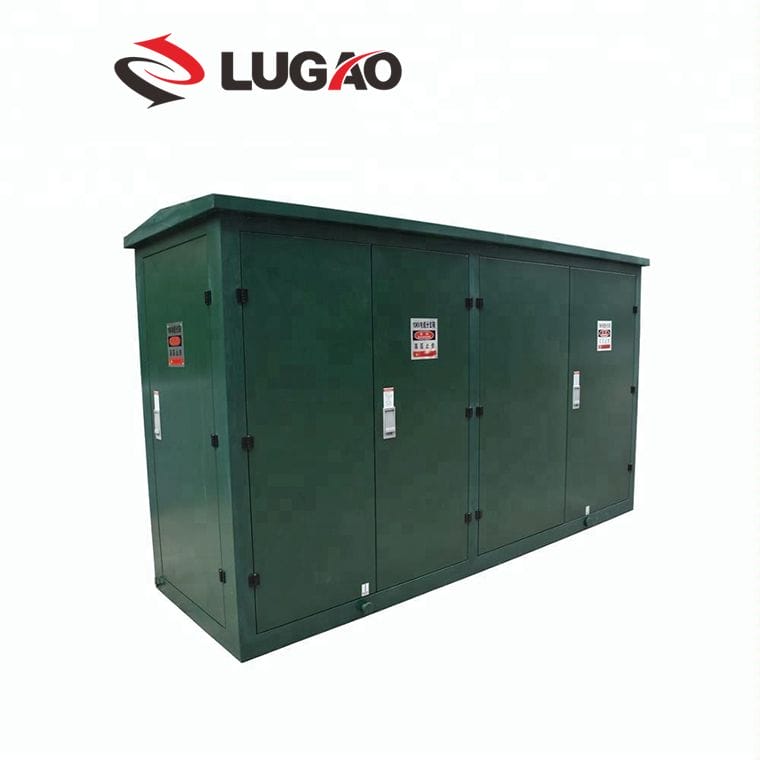

Liugao takes pride in being 11KV 24KV 33KV Outdoor High Voltage Cable Branch Box supplier.DFW series high voltage cable branch box serves as a critical component in the 33KV, 24KV, and 11KV cable systems, facilitating node connections.As the primary electrical equipment for cable assembly and separation from the switchgear outlet, the cable branch box utilizes high-grade rubber insulation, ensuring safety with no exposed live parts.Featuring an SF6 insulated load switch, the DFW cable branch box is designed for outdoor, maintenance-free operation, achieving a high protection degree of IP933, including an antiflood underground branch connector.

This equipment finds extensive applications in urban districts, residential areas, commercial centers, mining zones, and large-scale enterprises such as steel, automobile, petroleum, chemical, and cement industries.Notably, it is well-suited for urban power grid reconstruction projects, offering substantial cost savings in electrical equipment and cables while enhancing power supply reliability.Compliant with standards like IEC62271-200 and IEC62271-100, the DFW series cable branch box ensures adherence to industry specifications.Operating Environment

Main New Advantages

Small size , compact structure,easy to install and operate;

Stainless steel or metal steel board ,which thickness≥2mm

Anti-corrosion & with special Spray-painting artworks;

Usage life more than 30 years ;

It can be used in some harsh environments like high or low temerature, some dust area;

Fully sealed structure, without insulation disrance;

High voltage electric parts with cable connector or use sillcon rubber for people safely ;

With zno arrester ;

Its cables can be splitted into be 7 branches to work together with SF6 loading switches to reach net power-supplying;

The cable connector can be used as switch ,it can be on or off with loading ,The max on-off voltage can reach 200Amp;

After fix the fault indicator ,user can test circuit fault very quickly;

Cheaper cost ,save cable ;

Cable connectors comply with IEE386 standard, all cables are suitable for cross linking polyethylene insulated cables.“Liugao Power Technology Group” is engaged in manufacturing,development,service ,solution,maintenance & marketing of H.V./L.V. power distribution equipments,switchgears,transformers,substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:

H.V.& L.V.switchgears

Power Distribution Board (PDB)

M.V solid insulated switchgears (SIS)

compact substations /Package substation/kiosk substation

single phase & three phase pad mounted transformers(PMT)

Gas insulated switchgears(GIS)

Cable Brach box

Blokset Switchboards/switchgears

Automatic feeder Voltage Regulator

Ring main units (RMU)

Oil-immersed transformers and dry type transformers

Vacuum circuit breakers (VCB),Air circuit breakers(ACB),mini circuit breakers(MCB),Moulded case circuit breakers(MCCB),Residual current circuit breakers(RCCB).Fuse cutout,overload relays,contactors.etc
