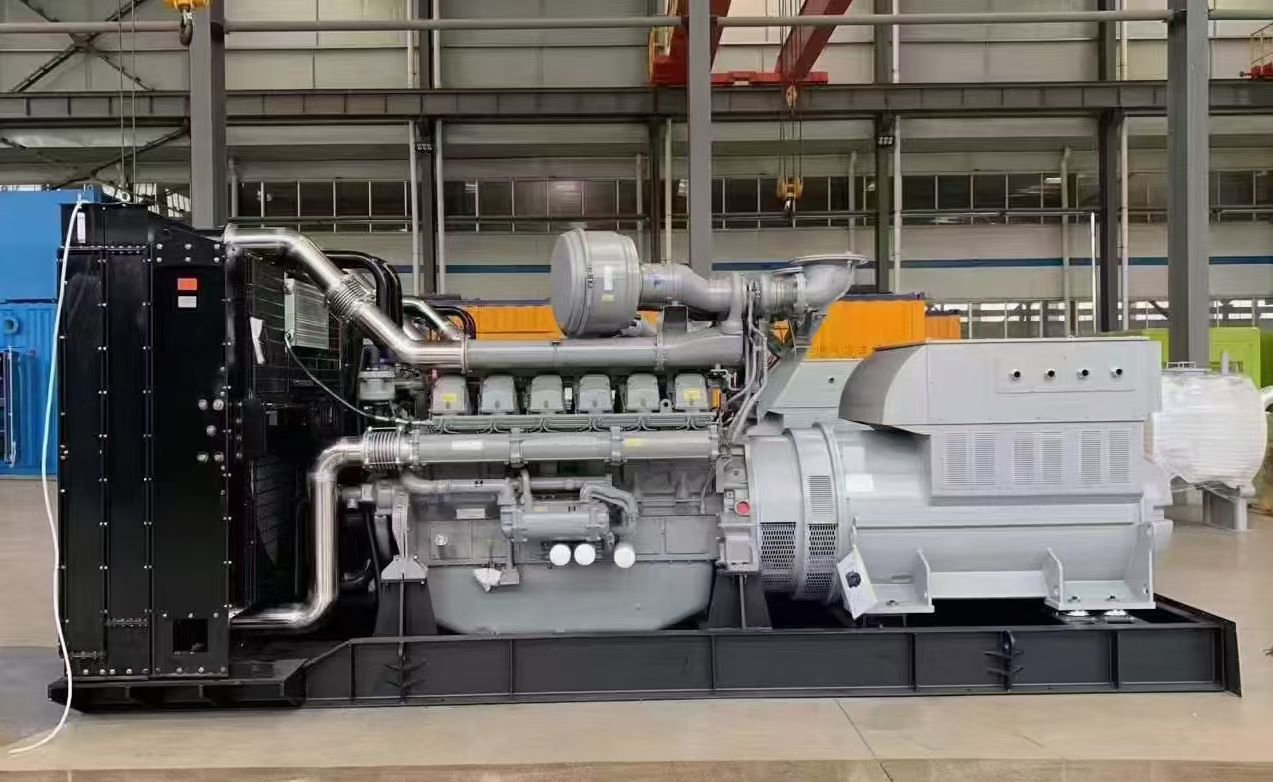

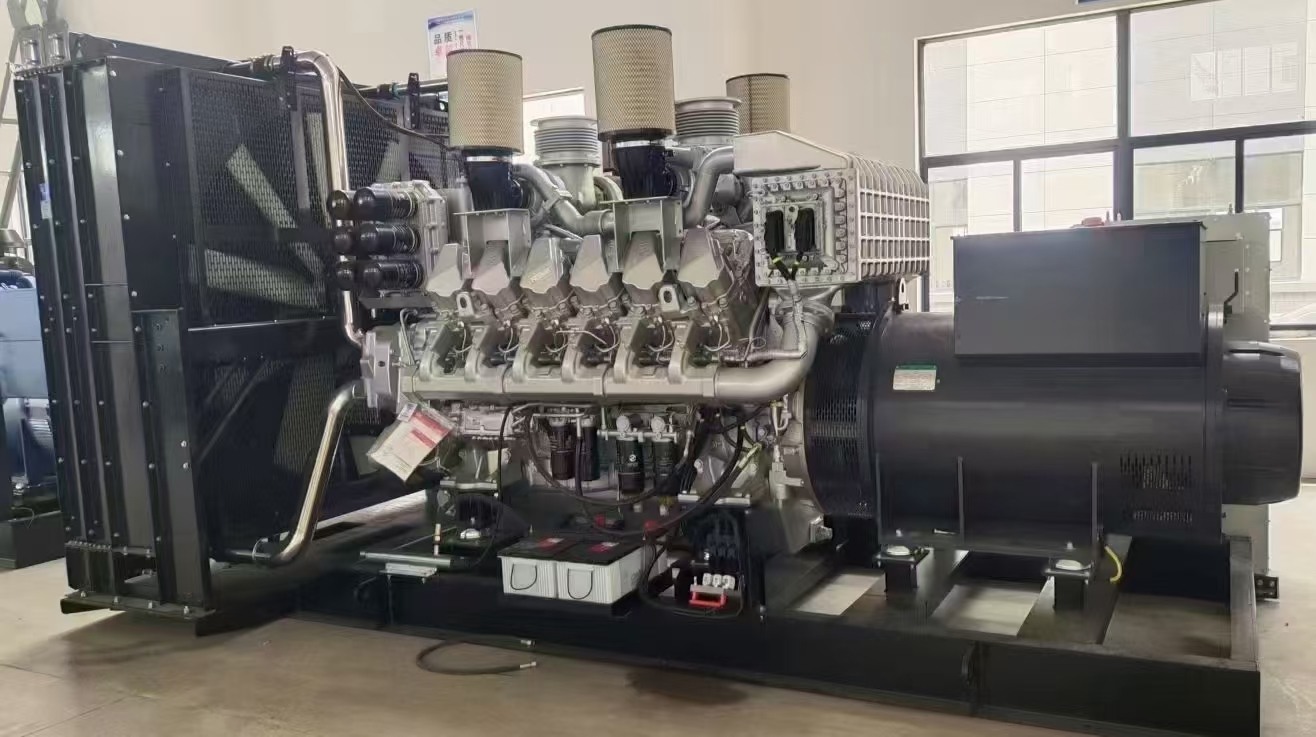

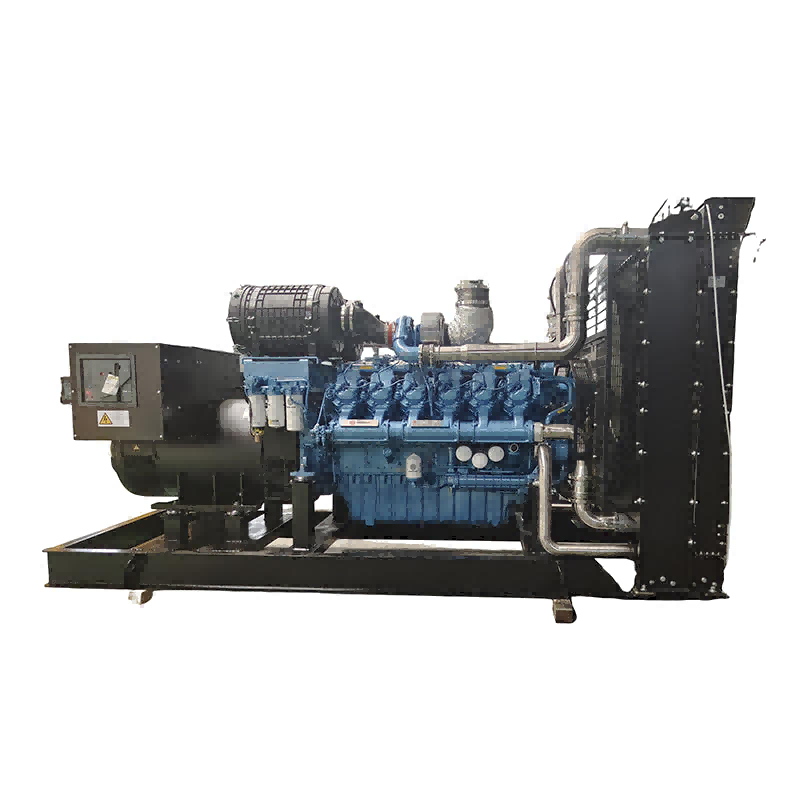

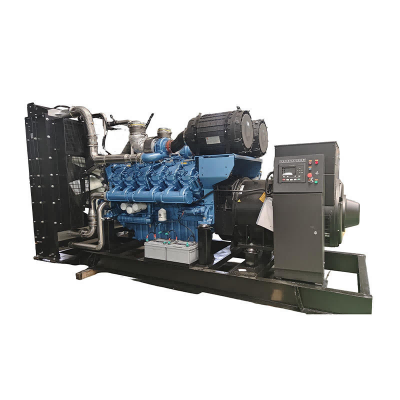

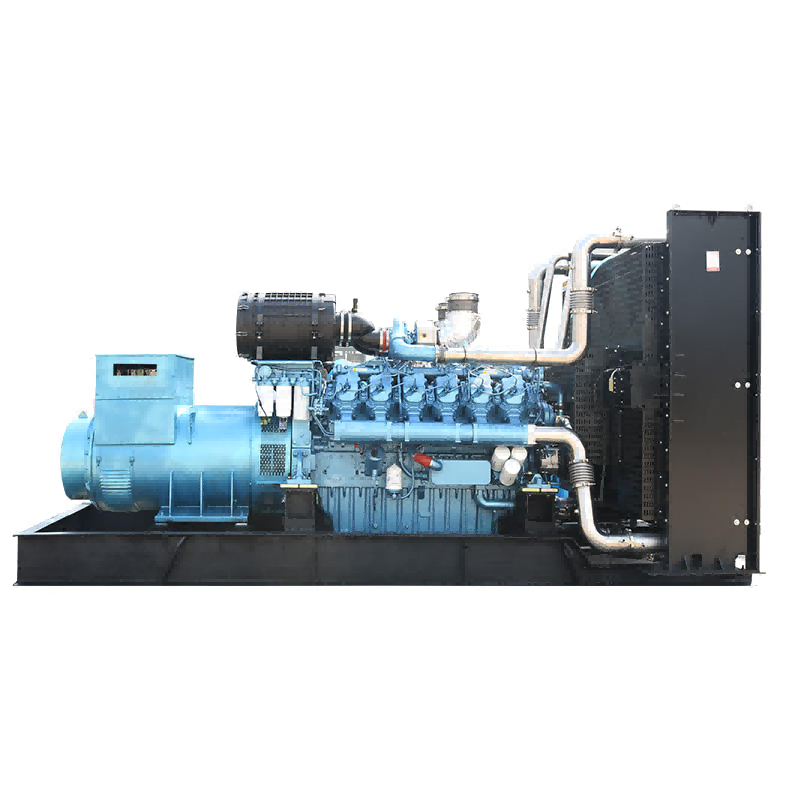

LUGAO LT-S1000GF type 1000kw 1200kw AC Diesel Generator Set

The AC diesel generator set produced by Lugao Power Co., Ltd. is an integrated power supply device driven by an AC generator driven by a diesel engine, which outputs stable industrial frequency AC power. It can also be called a backup power supply and a silent mobile power station, which automatically responds to power grid interruptions within 10 seconds. Not only is the power high, but the noise is also low, meeting urban environmental protection requirements; the trailer-type design is suitable for disaster relief and temporary power supply on construction sites, and the intelligent control system supports cloud monitoring to reduce operation and maintenance costs.

Model:LT-S1000GF

Send Inquiry PDF DownLoad

Product Description

Core structure of AC diesel generator set

As the power core of AC diesel generator set, diesel engine adopts four-stroke turbocharging technology to ensure efficient energy conversion within the power range of 12-3000kVA. Lugao Power is the world's top diesel engine brand, guaranteeing a life of 100,000 hours without major repair. The engine system of AC diesel generator set is equipped with intelligent cooling module, which can operate stably at ambient temperature of -25℃ to 50℃ to meet the needs of extreme working conditions.

The AC generator adopts brushless excitation and electromagnetic isolation design, with voltage fluctuation rate ≤±1.0% and THD distortion rate <5%. Lugao Power configures H-class insulated copper wire winding for AC diesel generator set, which supports 100% sudden load impact and ensures the power supply safety of sensitive loads such as data centers and medical equipment.

Specification

Technical Specifications of Diesel Generator Sets
Unit Model	LT-S1000GF	Rated power factor	cOSφ=0.8(hysteresis)
Unit power(kW)	1500	Voltage fluctuation rate(%)	≤±0.5
Unit power(KVA)	1875	Transient voltage regulation rate(%)	+20~-15
Rated output voltage	400V/230V	Load sudden voltage stabilization time (s)	≤2
Rated current	3240	Steady-state frequency adjustment rate(%)	≤±1
Rated frequency	50Hz/60Hz	Frequency fluctuation rate (%)	≤±2
Rated speed	1500rpm/1800rpm	Transient frequency adjustment rate(%)	+9.8~-7
Startup method	Electric start	Load mutation frequency stabilization time(S)	≤3

Diesel Generator Set Configuration
diesel engine		dynamo
Diesel engine brand	LUGAO	Rated Power	1500
model	16M33D1800E310	Rated current	3240
Diesel engine power	1800	Rated voltage	400/230V
Cylinder diameter*stroke (mm)	150*185	frequency	50HZ/60HZ
Air intake method	Turbochager	Speed	1500rpm/1800rpm
Combustion method	Direct injection	Power Factor	0.8
Total piston displacement(L)	52.3	Phase	Three-phase four-wire
Fuel consumption rate (g/kw.h)	200g/kw.h	Protection level	IP22
Cooling method	Intercooler	Startup method	Electric start
