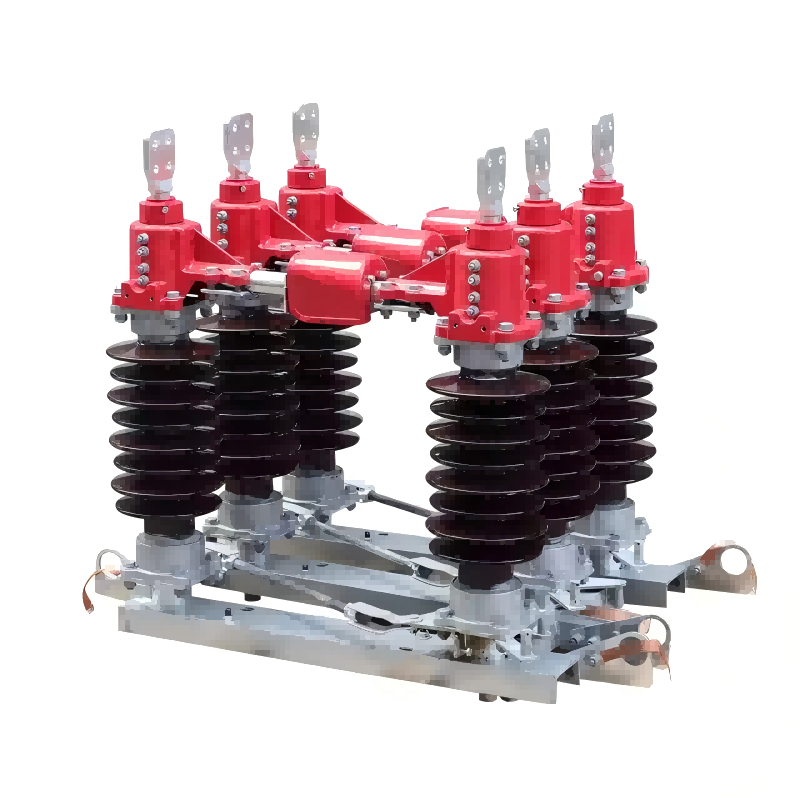

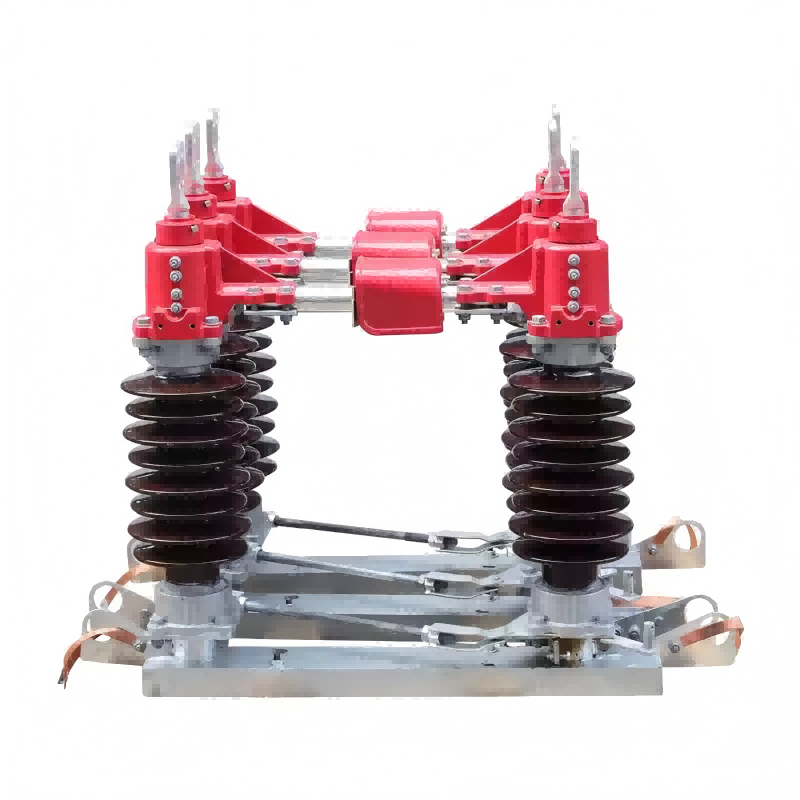

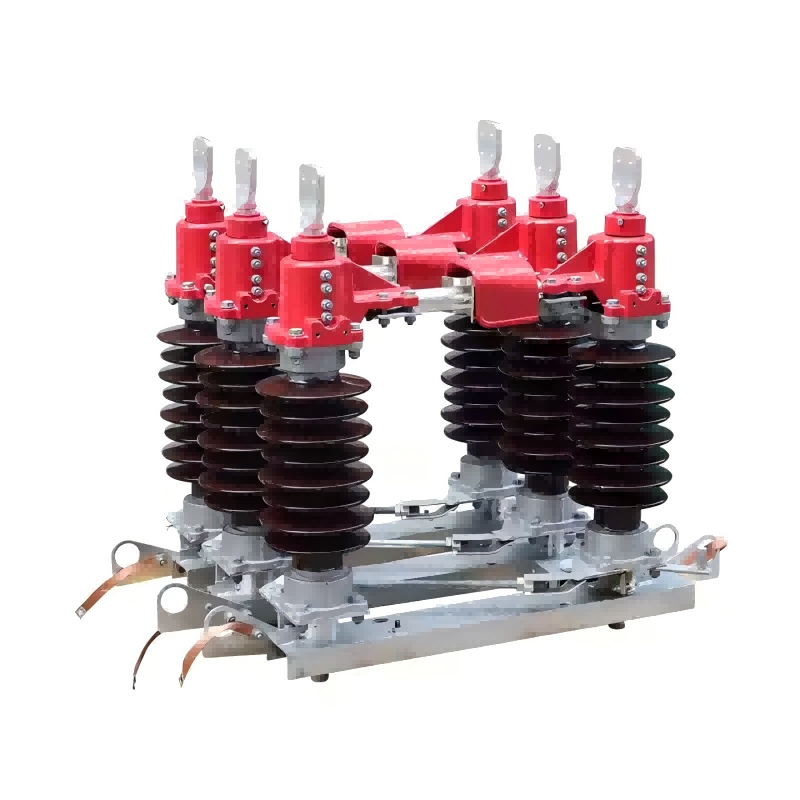

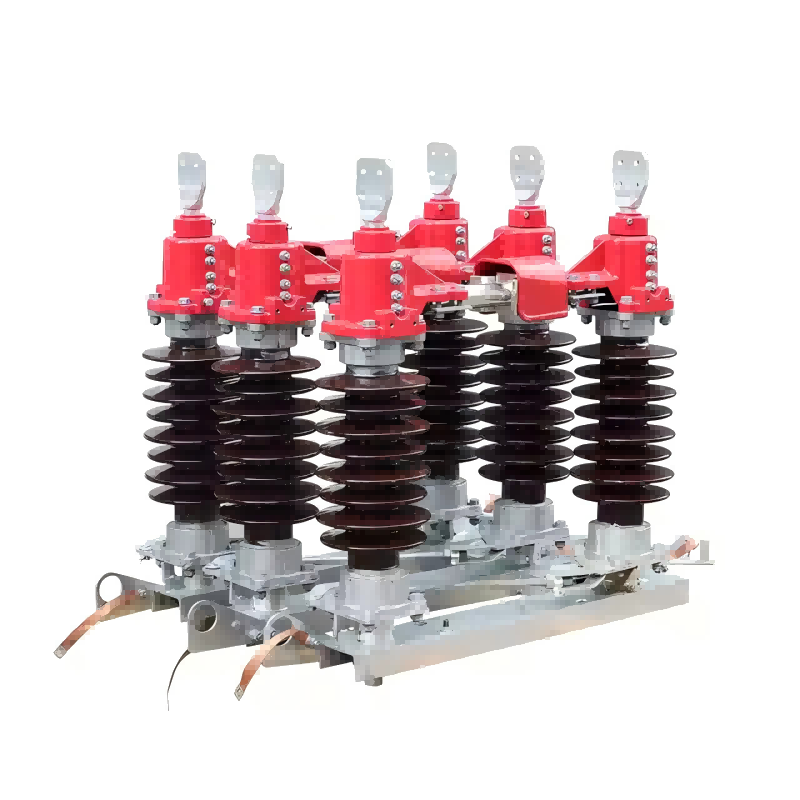

The GW4 35kv/110kv Outdoor Vertical Operate Type Three-Phase Disconnect Switch is a vital component of high-voltage electrical systems. It features a three-pole design with a central rotating blade, allowing for manual or power-operated circuit connection and disconnection. It utilizes the same main switch opening and closing operation. During installation, the left and right contacts are rotated 90 degrees on the same side. The earthing switch is rotated first, then inserted straight in. The main blade is made of copper, with thick silver-plated contacts. It connects a multi-layer conductive terminal structure with a flexible connector to a grounding tool. The grounding tool is constructed of aluminum alloy conductive tubing, with thick silver-plated copper contacts and exposed metal parts hot-dip galvanized. Utilizing high-quality materials and advanced design, it offers exceptional environmental adaptability, capable of withstanding harsh outdoor conditions such as strong winds and heavy rain.

Operating Environment

1. Ambient temperature: -30°C-+40°C;

2. Altitude: no more than 2000m (products with special requirements can be provided);

3. Wind speed: no more than 34m/s;

4. The installation site should be free of flammable substances, explosion hazards, chemical corrosion and severe vibration;

5. The pollution level of the pillar insulator: the common type is level 0, and the anti-pollution type is level II.
