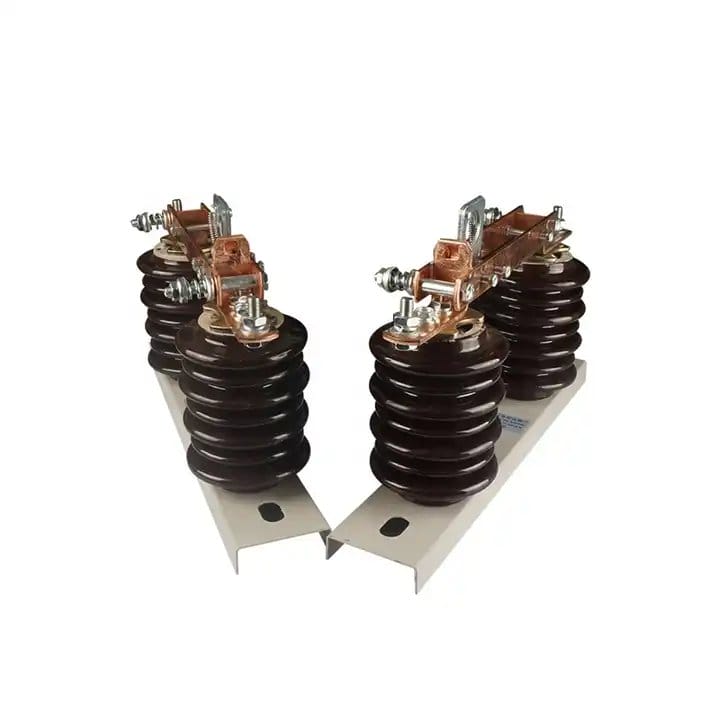

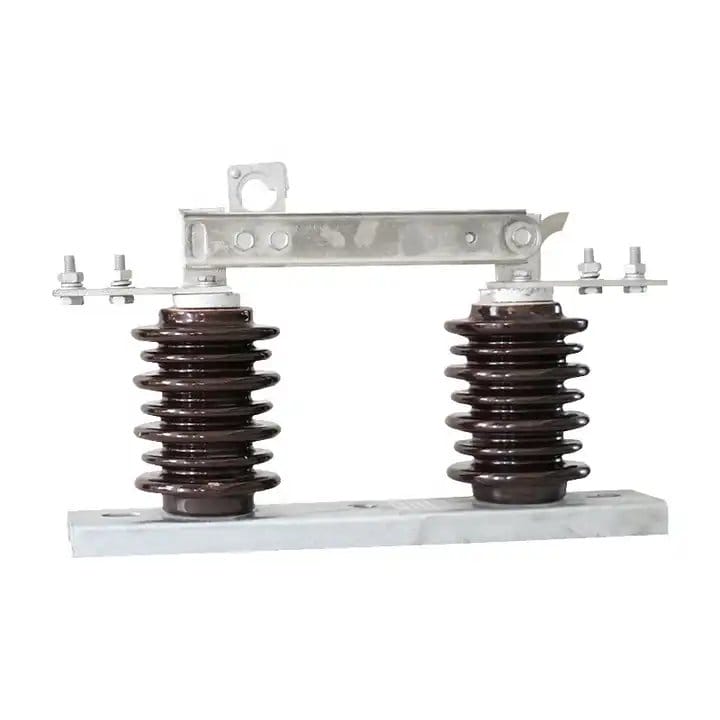

Liugao is a excellent 12KV Outdoor Disconnecting Switch supplier.Our GN22-12 indoor high voltage disconnect switch is suitable for a rated voltage of 10KV, three-phase AC 50HZ in high-voltage switchgear within the power system, serving as a circuit breaker with voltage and no load. The switch features a novel, reasonable, and unique structure design. It adopts a two-step action locking method, providing excellent dynamic and thermal stability with low operating force. Utilizing epoxy resin, insulators, and brush-plated silver, along with other new materials and processes, the switch ensures good conductivity, compact size, and light weight. Its outgoing terminals easily connect with vacuum circuit breakers and oil circuit breakers, reducing the volume of switch cabinets, minimizing transition joints, and lowering costs.

12KV Outdoor Disconnecting Switch Operating Environment

Installation method: side-mounted, middle-mounted

Ambient air temperature: upper limit +40C, lower limit -30C; ;

Altitude: ≤2000m (if the altitude needs to be increased, the rated insulation level should be increased accordingly);

Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);

Amplitude: earthquake intensity 8 degrees;

Contamination level: Class I;

Maximum daily temperature difference: no more than 25C.

12KV Outdoor Disconnecting Switch Specification

12KV Outdoor Disconnecting Switch Features

Factory Shoot

Packaging
