Liugao proudly stands as the foremost 126KV Outdoor High Voltage SF6 Circuit Breaker supplier. Our LW Series, featuring the self-energy sulfur hexafluoride circuit breaker, boldly employs the self-interrupter principle—a revolutionary approach that dramatically reduces the pressure cylinder's diameter and weight. In the realm of high-voltage circuit breakers, Liugao leads with bold innovations that prioritize efficiency, compact design, and cutting-edge technology. Choose Liugao for groundbreaking solutions that redefine the standards of outdoor high voltage SF6 circuit breakers.

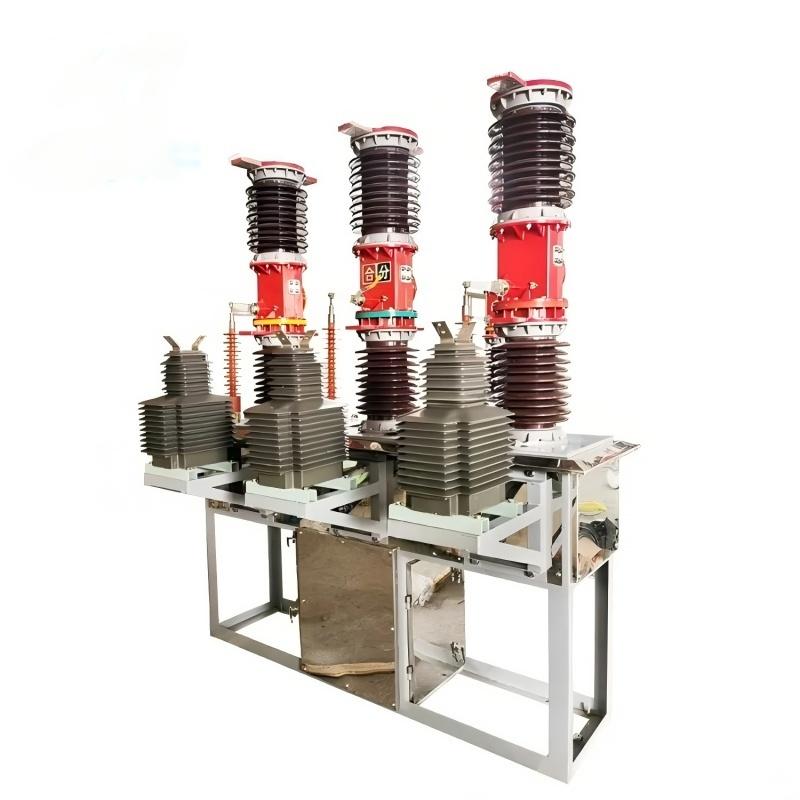

  This design leads to a decreased operating power requirement, enabling the integration of a spring operating mechanism.  The circuit breaker consists of three single-pole units, each mounted on a spring mechanism and combined on three brackets.  This configuration allows for both single-pole operation and the achievement of three-pole electrical linkage.  The spring mechanism is positioned on the bracket's side, while the electrical control system is housed inside the body.  The breaker's upper part features a single-pole circuit breaker interrupter, a middle pillar porcelain set, and the lower part serves for sealing, opening spring, and buffering purposes.

126KV Outdoor High Voltage SF6 Circuit Breaker Operating Environment

1. Ambient temperature: -40 C ~ +50 C.

2. Daily average ambient air relative humidity ≤ 95%, on average ≤ 90%;

3. Wind pressure: less than 700pa.

4. Altitude: less than 3000m.

5. Earthquake intensity: not more than 9 degrees.

6. Air Contamination: Ⅲ grade.

126KV Outdoor High Voltage SF6 Circuit Breaker Specification

126KV Outdoor High Voltage SF6 Circuit Breaker Features

Factory Shoot

Packaging
