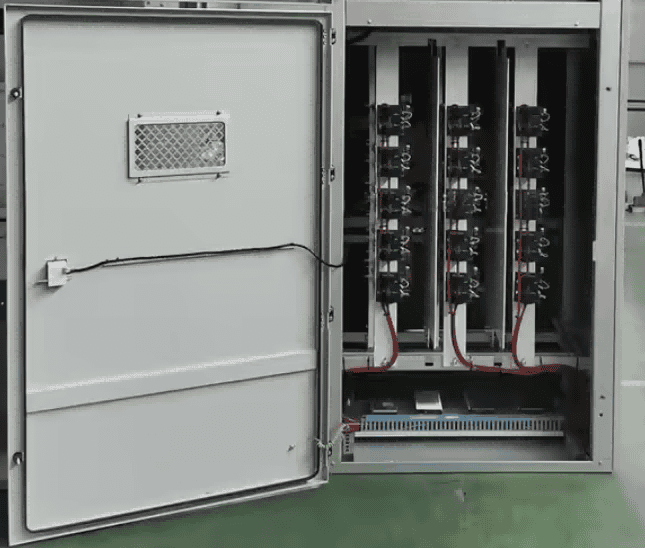

The Smart 3 Phase High Voltage Medium Voltage Solid State Soft Starter Device ensures smooth motor starting, reduces inrush current, and protects equipment. Ideal for industrial pumps, fans, and heavy machinery, it offers energy-efficient operation and advanced digital control for reliable performance.
High-voltage soft start can reduce the voltage drop of the power grid caused by direct starting of the motor. The use of this product will not affect the normal operation of other equipment in the common network. It can reduce the impact current of the motor. The impact current will cause excessive local temperature rise of the motor and reduce the life of the motor. It can reduce the mechanical impact caused by direct starting. The impact accelerates the wear of the driven machinery. It can reduce electromagnetic interference. The impact current will interfere with the normal operation of electrical instruments in the form of electromagnetic waves. High-voltage soft start can start and stop freely, improving work efficiency.
Application range
High voltage soft starter is suitable for starting AC motors with rated voltage of 3-15KV. The product is widely used in large-scale steel, petroleum, chemical, aluminum, fire protection, mining, sewage treatment, electricity and other industrial fields, and can be well matched with motor traction equipment. Such as: water pumps, fans, compressors, crushers, mixers, belt conveyors and other electromechanical equipment.
Technical parameters:
1. Three-phase power supply: AC3K, 6KV, 10KV, 15KV±30%.
2. Control power supply: AC220V+15%
3. Frequency: 50Hz±3%
4. Applicable motor: general squirrel cage asynchronous motor, synchronous motor.
5. Starting frequency: can be started frequently, it is recommended to start no more than 10 times per hour.
6. Protection level: 1P4X
7. Cooling method: natural cooling or forced air cooling
8. Installation location: indoor
9. Environmental conditions: above 1500 meters above sea level, the capacity should be reduced accordingly.
10. Ambient temperature: between -25~+45C
11. The corresponding humidity does not exceed 95% (20C±5C)
12. No flammable, coal-like, corrosive gas, no conductive dust, indoor installation, good ventilation, vibration less than 0.5G.
Factory display
Packaging
