Low Voltage Drawer Type Switchgear
  • Low Voltage Drawer Type SwitchgearLow Voltage Drawer Type Switchgear
  • Low Voltage Drawer Type SwitchgearLow Voltage Drawer Type Switchgear
  • Low Voltage Drawer Type SwitchgearLow Voltage Drawer Type Switchgear
  • Low Voltage Drawer Type SwitchgearLow Voltage Drawer Type Switchgear
  • Low Voltage Drawer Type SwitchgearLow Voltage Drawer Type Switchgear

Low Voltage Drawer Type Switchgear

LuGao stands out as a leading professional Low Voltage Drawer Type Switchgear manufacturer with a strong focus on quality and innovation. Our low voltage switchgear is specifically designed for three-phase AC systems operating at 50Hz, with a rated voltage of 690V and below, and a rated current of 4000A and below. Ideal for use in three-phase four-wire systems or three-phase five-wire systems, our switchgear plays a pivotal role in power conversion, distribution, and control within various power systems. Trust LuGao for cutting-edge solutions that ensure efficient and reliable operation in diverse applications.

Send Inquiry

Product Description


Lugao takes pride in being a premier supplier of Low Voltage Drawer Type Switchgear.  Our Low Voltage Drawer Type Switchgear has successfully obtained national compulsory product certification (CCC certification), demonstrating its adherence to the stringent standards set by GB7251.1 and JB/T9661.  This switchgear has not only met the national requirements but has also undergone extensive and rigorous test runs to ensure its durability and reliability in real-world applications.  Choose Lugao for trusted solutions that align with industry standards and have proven their performance through thorough assessments.  Low Voltage Drawer Type Switchgearcan be widely used in a variety of low-voltage distribution system, such as power plants, substations, industrial and mining enterprises, building hotels, residential areas, municipal construction, etc.

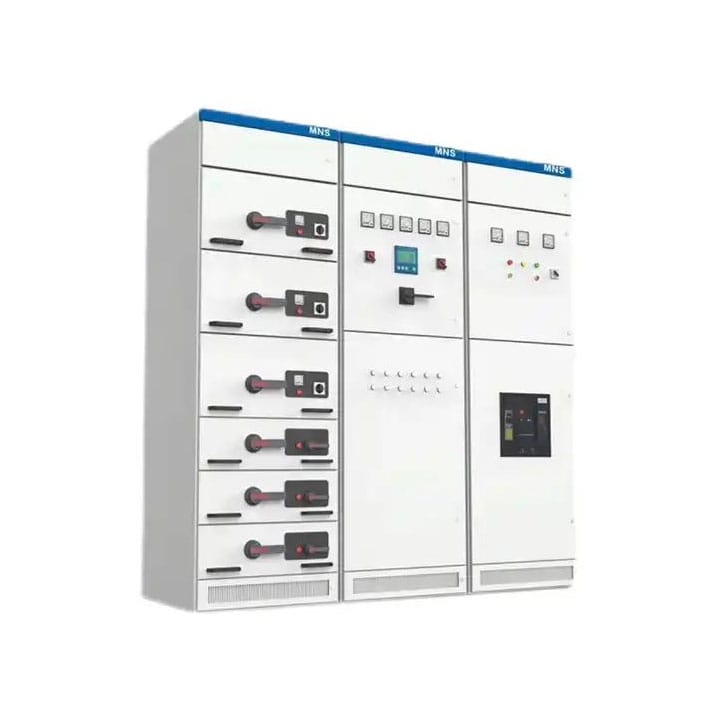

The frames of MNS switch cabinet is combined type and it is assembled by C type steel. All frame structures are treated through galvanization process and connected into the basic framework by the thread forming screws or 8.8-grade hexagon bolts. The whole switch cabinet consists of the door, septum, installing brackets and bus function units.    The inner dimensions of switch cabinet, components and compartments are all changing according to the modular (E=25mm)


Each cabinet is divided into three chambers: horizontal bus chamber (in the rear of the cabinet), drawer chamber (in the front of the cabinet) and cable chamber (in the beneath or the right front of the cabinet). Chambers are separated by a steel plate or flame- retardant plastic function board of high strength.Top drawer and lower drawer are separated by metal sheet with vents in order to efficiently prevent accidents caused by flashover of broken components or short circuit of line




Low Voltage Drawer Type Switchgear Operating Environment

1.Ambient temperature: -25ºC~+40ºC

2. Altitude: ≤2000m (If it is more than 2000m, please specify when ordering.)

3. Relative humidity: ≤95%(+25ºC)

4.Earthquake intensity: ≤8 degrees Installation environment: In the place where there is no fire, no explosion hazards, no serious pollution,no chemical corrosion and severe impact.

Low Voltage Drawer Type Switchgear Product Characteristics

• Low voltage switchgear Structural components are highly versatile and flexibly in assemble.      With modulus E = 25mm, structure and extraction unit can arbitrary combination to meet the needs of system design

• The bus bar is protected by the high-strength flame-retardant high insulating strength plastic functional board.      With the anti-fault arc • performance to make the operation and maintenance safe and reliable

• Mechanical interlocks of all size drawers meet the requirements of standards.      There are three obvious positions of connection, test, and separation which is safe and reliable

• Standard module design can compose protection, operation, conversion, control, regulation, instructions and other standard units, and

• can be assembled according to the requirements

• High strength flame-retardant engineering plastic is adopted to improve the performance of safe protection eff.

Low Voltage Drawer Type Switchgear Specification

Item NO.: MNS
Order(MOQ): 1
Payment: T/T,D/P,etc.
Market Price: 2000
Price $2000/set
Product Origin: China
Color: White
Shipping Port: China port
Lead Time: 30 days

Low Voltage Drawer Type Switchgear Product Features

Low Voltage Drawer Type Switchgear Factory Shoot

Low Voltage Drawer Type Switchgear Packaging
