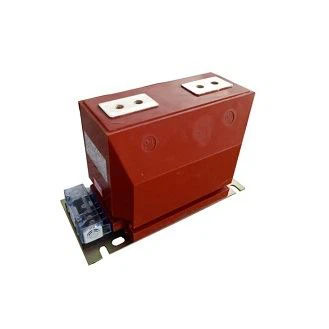

Dry Type 10KV CT Epoxy Resin Current Transformer Indoor

Liu Gao a distinguished manufacturer boasting 15 years of expertise in current transformer production, takes pride in its position as a leading provider of Dry Type 10KV CT Epoxy Resin Current Transformer Indoor. Our current transformers bear the famous Chinese trademark and demonstrate a strong commitment to unmatched quality. One of our notable offerings, the IDZX(F)71-10 outdoor current transformer, is a single-phase multi-winding, fully sealed epoxy resin casting product.This current transformer features a residual winding designed for precise measurement of voltage and electric energy.Beyond its measuring capabilities, it plays a vital role in relay protection within electric systems, specifically engineered for applications with a rated frequency of 50Hz and a rated voltage of 10kV or below. Liu Gao's current current transformers stand as a testament to cutting-edge technology and dependable solutions in the realm of electrical transformers.Whether considering application scenarios, cooperation cases, or sales volume, our concise and coherent language reflects a commitment to excellence in every aspect of our manufacturing prowess.Choose Liu Gao for a trusted partner in meeting your transformer needs.

Send Inquiry

Product Description

Liu Gao a leading China current transformer supplier, specializing in the provision of Dry Type 10KV CT Epoxy Resin Current Transformer for indoor applications. Our cutting-edge voltage transformers, designed and crafted to meet the highest standards, have achieved successful deployment in diverse regions, including Pakistan, Mongolia, Bangladesh, Syria, North Korea, Chile, Peru, and within the China State Grid.

Our current transformers, meticulously crafted as casting resin and fully enclosed products, play a pivotal role in metering electric energy and current. Functioning seamlessly, they provide reliable relay protection in electrical systems with a rated frequency of 50Hz. Compliant with international standards such as IEC44-1, GB20840.1-2010, and GB20840.2-2014, Liugao ensures the precise and reliable execution of the current transformer.Choose Liugao for unparalleled expertise, quality, and deployment success in the realm of current transformers. As your trusted partner, we are committed to delivering superior current transformer products that consistently surpass industry standards.

Dry Type 10KV CT Epoxy Resin Current Transformer Indoor Operating Environment

Use environmental conditionThis type of current transformer is epoxy resin one-piece casting. It cs: -25 °C to +40 °C; daily average temperature does not exceed: +35 °C; Monthly average maximum relative humidity: 95% (at 25°C); maximum wind speed: 34 m/s; Anti-fouling rating can be customized according to actual user requirements.

Dry Type 10KV CT Epoxy Resin Current Transformer Indoor Characteristics

1. Stable insulation, safe and reliable operation.

2. No leakage risk, no pressure, no fire risk, no pollution.

3. No need intermediate maintenance and testing.

4. Excellent resistance to mechanical shock and seismic.

5. Silicone rubber sheds adapt to the harsh environment.

6. Moisture resistance, anti-fog performance.

Dry Type 10KV CT Epoxy Resin Current Transformer Indoor Specification

Rated primarycurTent(A)	Rated primarycurtent(A)	Accuracy classcombination	Rated secondary output(VA)				Rated short time thermal	Rated dynamic stabilitycurrent (kA peak)

			0.2,0.2S	0.5,0.5S	10P10	10P15
LZZBJ9-10(A、B、C)	5	0.2/10P 0.2S/10P 0.5/10P 0.5S/10P	10	10	10	15	2	5
	10						4.5	11
	15						6.3	15
	20						9.5	23
	30						12.6	31.5
	40						18	45
	50						22	55
	70						36	80
	100-200						50	90
	300-600						72	100
	800-1200						80	110
	1500-3150						100	130
	Rated primarycurtent(A)	Accuracy classcombination	Rated output(VA)				Rated short time thermal	Rated dynamic stabilitycurrent (kA peak)
	20,30,40 50,75,100	0.2/0.2/5P10 0.2/0.5/5P15 0.2/0.5/5P20 0.2/5P10/10P15 0.5/5P10/10P20	10/10/40 10/15/30 10/15/20 10/20/20 10/20/15				150IIn	375IIn
	150,200						31.5	80
	300,400						45	112.5
	500						63	130
	600,800						63	130
	1000,1200,1250						80	160
	1500						100	160
	2000
	2500
	3000,3150
