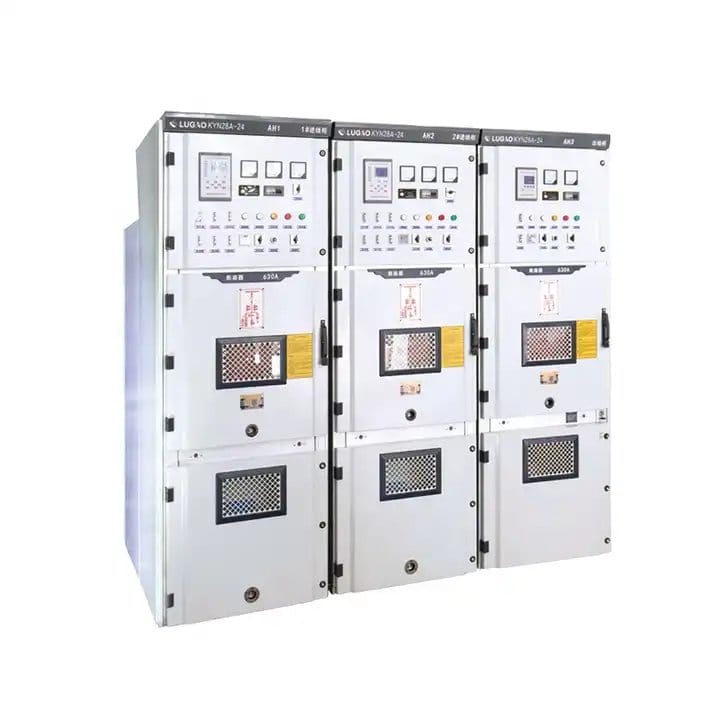

Armored Removable AC Metal Enclosed Switchgear 33KV

LiuGao proudly stands as a specialized Armored Removable AC Metal Enclosed Switchgear 33KV manufacturer.Our Armored Removable AC Metal Enclosed Switchgear 33KV, referred to as switchgear, operates within the 3.6-12 kilovolt range, supporting a three-phase AC 50Hz single bus bar and a single bus bar subsection system.This comprehensive electricity distribution equipment finds application in power plants, small and medium-sized generator power transmission, industry and mining power distribution, as well as the second transformer substation in electrical industry systems, facilitating electric takeovers, power transmission, and large-scale high-pressure motor starting. Engineered to control, protect, and monitor, this switchgear meets the standards of IEC298 and GB3906.It ensures prevention of inadvertent charge pushing and pulling of the breaker, opening and closing of the breaker, insulation mishaps, and closure of the breaker by a grounded switch.Additionally, it prevents the opening of the switch's interlock when it is mistakenly energized.Compatible with both VSI vacuum circuit-breakers and ABB Corporation's VD4 vacuum circuit-breakers, this switchgear exemplifies superior performance as a reliable power distribution solution.

Send Inquiry

Product Description

Liugao is a Armored Removable AC Metal Enclosed Switchgear 33KV supplier.The switch equipment is designed according to GB3906-91 metal armoring seal switch equipment. The rectifier body is made up of the cabinet body and draw-out parts (namely handcart) placed in the middle. See charter 1. The cabinet divides into four separate rooms, the outer covering protection grade is IP4X,when each small room and the circuit breaker is opened, the protection grade is IP2X. It can suspend the inlet, outlet line, cable's inlet, outlet line and other function plan. After arranged and combined, it can become each kind of plan form of the power distribution equipment. This switch equipment may be installed and maintained from the frontage, therefore it may compose the dual arrangement back to back and be installed against the wall, improving the switch equipment's security and flexibility and making full use of the occupying area.

Armored Removable AC Metal Enclosed Switchgear 33KV Operating Environment

1. Normal condition

a. Surrounding air temperature:- 10℃～+40℃

b. Altitude: 1000M

c. Relative environment humidity: The daily relative humidity average is not higher than 95%, the monthly relative humidity average is not than higher 90%

d. Earthquake : The intensity does not exceed 8 degree.

e. The surrounding air without corrosive or flammable gas or water vapour.

f. Without a lot of dirtiness and regular fierce vibration, under the severe condition, the intensity meets the first kind requirement.

2. special working conditions

* When it is used beyond the normal environmental condition stipulated in the GB3906, the user should consult with the manufacture.

Armored Removable AC Metal Enclosed Switchgear 33KV Characteristics

The framework of handcart is made of steel sheet through the procession of CNC machine tool and rivet welding. According to the application, the handcarts can be divided into circuit breaker hand-cart, voltage transformer handcart, isolating handcart and metering handcart, etc. The handcarts of the same specification can be exchanged conveniently. In the cabinet, the handcart has isolating position, testing position and operating position, each of which is designed with a location device to assure that the handcart can 't move easily at the above-mentioned positions, while the interlock must be unlocked to move the handcart.

The bus is led from one switch cabinet to another one and fixed with static contact box through branch bus. The fat branch bus is connected through the bolt to the static contact box and main bus,not needing any other line clamps or insulators. When there is special demand of the clients or the project, the connecting bolt on the bus bar can be encapsulated with insulation and end cap. When the bus crosses the baffle of the switch cabinet, fix it with bus bushing, so that, if there is any internal fault arc, it can prevent the fault spreading to another cabinet and can guarantee the mechanical strength of the bus.

Inside the cable chamber, the current transformer, grounding switch, arrester and cable can be installed, and on the bottom is designed slotted removable aluminum sheet to assure the convenient site construction.

Relay instrument chamber is used to install all kinds of components, such as relays, instruments, signal indicator and operating switch, etc. In addition, it's available to add a small bus chamber on the top of the instrument chamber according to the demand of the clients, and set 16 lines to control the small bus.

On the handcart chamber, bus chamber and cable chamber is installed pressure releasing device. When there is internal fault arc in the breaker, main bus or inside the cable chamber, and with the appearance of electric arc, the internal pressure in the switch cabinet rises. After it rises to a certain pressure, the pressure releasing metal sheet of the top device will be opened automatically, and the pressure and the gas are released to guarantee the safety of the operator and the switch cabinet.

Latching device is used to connect the central exit and cabinet body, and the lifting device is also designed to make it more convenient to open the central exit. When the central exit stays closed, the connecting strength with the cabinet body is the best and the capability against the internal arcing fault effectively is strengthened.
