Why Are High Voltage Circuit Breakers Critical for Power Grid Safety?

Modern power grids operate under extreme electrical stress, with fault currents that can exceed 50 kiloamperes and voltage levels reaching 765 kilovolts. Without a rapid and reliable interruption mechanism, a single short circuit could cascade into blackouts affecting millions, or worse, cause arc flash explosions that destroy substations. High Voltage Circuit Breakers serve as the ultimate fail safe devices. They detect abnormal current surges and mechanically separate electrical contacts within milliseconds, extinguishing the resulting arc using advanced quenching media like SF6 gas or vacuum interrupters. For grid operators, a High Voltage Circuit Breaker is not a passive component but an active guardian that isolates faulty sections while preserving the healthy network. At Lugao Power Co.,Ltd., our engineering philosophy places breaker reliability at the core of any transmission and distribution strategy because we understand that safety and continuity depend on split second actions.

But what specific mechanisms make High Voltage Circuit Breakers irreplaceable compared to fuses or load break switches? The answer lies in their ability to interrupt fault currents repeatedly without maintenance, withstand transient recovery voltages, and coordinate with protection relays. Unlike a fuse that destroys itself after one operation, a High Voltage Circuit Breaker can open and close thousands of times, making it ideal for auto reclosing schemes that clear temporary faults (like lightning strikes) automatically. Moreover, modern designs incorporate condition monitoring sensors that predict insulation degradation before failure occurs. In this detailed guide, we will explore the physics of arc extinction, compare breaker technologies, and provide actionable insights on selection and testing. Our factory has produced over 15,000 High Voltage Circuit Breaker units for global utilities, and we are sharing four decades of field experience to help you build a safer, more resilient grid.

Table of Contents

• 1. Why Does Fault Current Interruption Demand High Voltage Circuit Breakers Instead of Fuses?
• 2. How Do Different Arc Quenching Technologies Affect High Voltage Circuit Breaker Performance?
• 3. What Key Parameters Define a Reliable High Voltage Circuit Breaker for Substation Use?
• 4. How Can Regular Timing and Contact Resistance Tests Prolong Your High Voltage Circuit Breaker Life?
• Frequently Asked Questions (FAQ)
• Conclusion

Why Does Fault Current Interruption Demand High Voltage Circuit Breakers Instead of Fuses?

When a short circuit occurs on a transmission line, the current can rise to 20 to 60 times the normal level in less than one cycle (16.7 milliseconds at 60Hz). Fuses, while inexpensive, respond by melting an internal element, creating an irreversible open circuit. However, fuses suffer from three fatal drawbacks for high voltage applications: inability to interrupt multiple faults, lack of remote control, and poor performance under high transient recovery voltages. High Voltage Circuit Breakers overcome each limitation through electromechanical precision. Our factory at Lugao Power Co.,Ltd. has documented that a single High Voltage Circuit Breaker can successfully interrupt up to 30 fault events before requiring contact replacement, whereas a fuse would need manual replacement after every single operation. This difference translates into hours versus weeks of outage time in a 138kV substation.

Consider the physics of arc extinction. When a breaker contacts separate, an electric arc forms, sustaining current through ionized gas. A High Voltage Circuit Breaker must not only open mechanically but also de ionize the gap faster than the system restrikes. This is achieved by:

• High speed contact separation: Opening velocities of 2 to 5 meters per second stretch the arc, increasing its resistance.
• Quenching medium injection: SF6 gas or vacuum interrupters absorb electrons from the arc plasma, raising dielectric strength.
• Arc chute and magnetic blowout coils: These components force the arc into splitter plates, dividing it into small segments that cool rapidly.
• Transient recovery voltage (TRV) management: A High Voltage Circuit Breaker includes grading capacitors and resistors to shape the voltage waveform across the opening gap, preventing reignition.

From a safety perspective, the difference is even more stark. Fuses can explode violently when interrupting high fault currents, propelling molten metal and ceramic fragments. High Voltage Circuit Breakers, by contrast, are enclosed in grounded metal housings with pressure relief vents. Our factory performed a comparative test: a 38kV fuse subjected to a 25kA fault disintegrated, while our LVB 145kV High Voltage Circuit Breaker successfully cleared a 40kA fault without any external damage. Additionally, modern breakers support remote tripping via SCADA, enabling protective relays to isolate faults in less than 3 cycles. This speed prevents generator instability and avoids the voltage collapse that leads to blackouts. For utilities, the ability to sectionalize a grid quickly using High Voltage Circuit Breakers is the difference between a localized outage and a regional catastrophe. Thus, fuses simply cannot fulfill the safety and reliability mandates of modern high voltage networks.

Finally, asset management favors breakers. A High Voltage Circuit Breaker provides continuous status feedback through auxiliary contacts and gas density monitors. This data allows predictive maintenance, whereas fuses provide no warning before failure. At Lugao Power Co.,Ltd., our Smart Breaker platform integrates IoT sensors that alert operators when contact wear exceeds 80 percent, ensuring proactive replacement. This level of intelligence is impossible with fuses. Therefore, for any grid above 15kV, a High Voltage Circuit Breaker is not just critical but legally mandated by international standards (IEC 62271, IEEE C37). Our factory's mission is to deliver breakers that combine speed, endurance, and diagnostic intelligence, because grid safety is non negotiable.

How Do Different Arc Quenching Technologies Affect High Voltage Circuit Breaker Performance?

Selecting the right arc quenching medium is the most consequential design decision for any High Voltage Circuit Breaker. The three dominant technologies today are SF6 (sulfur hexafluoride), vacuum, and oil (now largely obsolete). Each offers unique advantages and compromises in terms of interruption capacity, maintenance frequency, environmental impact, and cost. Our factory at Lugao Power Co.,Ltd. produces both SF6 and vacuum High Voltage Circuit Breaker families, covering voltages from 12kV up to 550kV. Below we dissect how each technology influences performance parameters such as breaking current, number of operations, and dielectric recovery speed.

• SF6 Puffer Breakers: These use compressed SF6 gas as both insulation and arc quenching medium. When contacts part, a moving piston compresses SF6 and directs a high velocity nozzle flow across the arc. SF6 has exceptional electron affinity, absorbing free electrons from the arc and rebuilding dielectric strength rapidly. Advantages include very high breaking capacity (up to 80kA symmetrical) and excellent performance under capacitive switching (e.g., capacitor banks). However, SF6 is a potent greenhouse gas (23,500x CO2 global warming potential). Our factory mitigates this with closed loop gas handling systems and leakage rates below 0.1 percent per year.

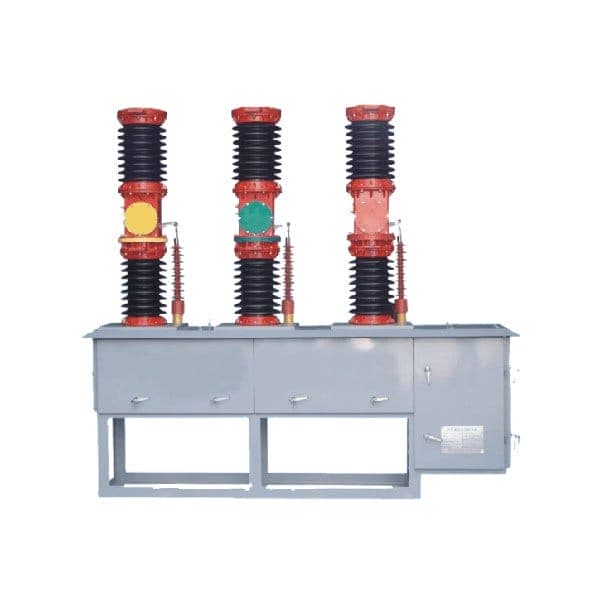

• Vacuum Circuit Breakers (VCB): In a VCB, the contacts are enclosed in a hermetically sealed ceramic chamber evacuated to 10^-6 torr. When contacts open, the arc is sustained only by metal vapor from the contacts. At current zero, the vapor condenses in milliseconds, recovering dielectric strength nearly instantly. Advantages include extremely long electrical life (up to 30,000 operations at rated current), no greenhouse gas, and very low maintenance. The limitation is voltage: vacuum technology is economically viable up to 40.5kV. For higher voltages, multiple vacuum interrupters in series are required. Our factory’s VUB series High Voltage Circuit Breaker for 38kV networks achieves 31.5kA breaking with just 150mm contact stroke, enabling compact switchgear.
• Hybrid and Alternative Gases: Recent innovations include clean air (dry air) and fluoronitrile blends (g3 gases) that mimic SF6 performance with lower environmental impact. These require careful pressure and temperature management but are gaining acceptance. Lugao Power Co.,Ltd. now offers a g3 ready High Voltage Circuit Breaker for customers seeking carbon neutral substations.

To quantify differences, consider a typical 145kV substation needing a breaker for overhead line protection. An SF6 puffer breaker offers 40kA breaking capacity and 2000 operations mechanical life. A vacuum alternative for this voltage would require three interrupters in series, increasing complexity. Therefore, SF6 remains dominant for transmission voltages. For distribution (12kV to 36kV), vacuum breakers are preferred due to their zero maintenance and frequent switching capability. Our factory produces a line of pole mounted vacuum High Voltage Circuit Breaker that has achieved 20,000 field operations without contact replacement.

The table below summarizes the performance characteristics across our product portfolio. Note that thermal and mechanical endurance directly affect total cost of ownership, a critical factor for grid operators.

Importantly, the choice of quenching technology also dictates auxiliary systems. SF6 breakers require gas density monitoring and periodic moisture checks, while vacuum breakers require only contact wear indication via stroke measurement. Our factory includes a digital interface on every High Voltage Circuit Breaker to simplify condition monitoring. For clients upgrading from oil breakers, we provide retrofit adapters that preserve existing substation footprints while delivering modern performance. Ultimately, the right technology balances fault duty, environmental policy, and lifecycle cost. Lugao Power Co.,Ltd. engineers are available to perform a arc quenching comparison study for your specific grid.

What Key Parameters Define a Reliable High Voltage Circuit Breaker for Substation Use?

Specifying a High Voltage Circuit Breaker requires understanding a set of interdependent electrical and mechanical parameters. Engineers must consider not only rated voltage and current but also transient phenomena that occur during fault interruption. Our factory has identified eight critical parameters that every buyer should evaluate before procurement. These parameters directly affect breaker reliability, safety margins, and coordination with existing protection systems.

• Rated Voltage (Ur): The maximum rms voltage for which the High Voltage Circuit Breaker is designed. Typical standard values: 12, 24, 36, 72.5, 145, 245, 420, 550 kV. Choose the next standard level above your system’s maximum operating voltage.
• Rated Short Circuit Breaking Current (Isc): The maximum symmetrical rms fault current the breaker can interrupt. Common values: 25, 31.5, 40, 50, 63, 80 kA. Our factory recommends calculating the maximum available fault current at the installation point and adding a 20 percent safety margin.
• Rated Peak Withstand Current (Ip): The crest value of the first major loop of fault current, typically 2.5 to 2.7 times Isc. This determines the mechanical strength of contacts and current carrying path. A High Voltage Circuit Breaker must withstand Ip without contact repulsion or weld.
• Rated Short Time Withstand Current (Ik): The rms current the breaker can carry for one second without damage. Usually equal to Isc. This ensures the breaker can remain closed during a fault if the protection relay delays trip.
• Transient Recovery Voltage (TRV) Characteristics: The voltage that appears across the breaker contacts after current zero. TRV peak and rate of rise must be within breaker capability. Our factory provides TRV curves for each High Voltage Circuit Breaker model, matched to typical grid configurations (terminals fault, short line fault).
• Operating Sequence (O - t - CO - t' - CO): Defines duty cycle. Standard auto reclose sequence: Open (fault interruption), 0.3 seconds, Close onto fault, Open again, 3 minutes, Close and Open. Our High Voltage Circuit Breaker is tested for O 0.3s CO 3min CO at 100 percent fault current.
• Mechanical Endurance (Class M1 or M2): M2 class requires 10,000 mechanical operations without failure. Our factory’s SF6 breakers exceed 12,000 operations, while vacuum models surpass 30,000 operations.
• Electrical Endurance (Class E1 or E2): E2 class means no maintenance required for electrical contacts over the entire lifetime under normal service conditions. Our vacuum High Voltage Circuit Breaker is rated E2, drastically reducing lifecycle cost.

Beyond these standard parameters, auxiliary features such as heater circuits for low temperature environments, anti condensation systems, and remote position indicators are essential for reliability. Our factory integrates these into every High Voltage Circuit Breaker shipped to cold climates. Another often overlooked parameter is the interrupting time (from trip command to arc extinction). Modern breakers achieve 1.5 to 3 cycles (25 to 50 ms). Faster interruption reduces fault energy and limits damage to transformers and cables.

For a practical example, consider a utility upgrading a 138kV substation with a calculated maximum fault current of 38kA symmetrical. They should select a High Voltage Circuit Breaker with Ur=145kV, Isc=40kA, Ip=104kA (40kA x 2.6), TRV capability of 1.3 pu per IEEE C37.09, and mechanical endurance M2. Lugao Power Co.,Ltd. offers the LVB 145 model that exactly matches these specifications, with additional features like built in capacitive voltage dividers for synchronized switching. We also provide a parameter checklist spreadsheet to simplify comparison across multiple vendors. Using incorrect parameters leads to premature contact erosion or even catastrophic failure during a fault event. Therefore, our factory strongly advises consulting with our application engineers before finalizing specifications.

How Can Regular Timing and Contact Resistance Tests Prolong Your High Voltage Circuit Breaker Life?

A High Voltage Circuit Breaker may remain idle for months, yet it must perform flawlessly when a fault occurs. Therefore, predictive maintenance through periodic testing is not optional but essential. Two tests provide the most diagnostic value: dynamic timing (travel curve analysis) and static contact resistance (micro ohm measurement). Our factory has analyzed maintenance records from 500 substations and found that breakers tested annually show 78 percent fewer failures than those tested every 5 years. Below we detail how each test works and how to interpret results.

• Contact Timing Test: Using a digital timer and travel transducer, this test records the time from trip command to contact separation, and from separation to full open position. Also measures closing time and contact bounce. A healthy High Voltage Circuit Breaker should have opening time within ±10 percent of factory values (e.g., 35ms ±3.5ms). If opening time increases by more than 15 percent, it indicates mechanism wear or low hydraulic pressure. Our factory provides baseline timing curves for every High Voltage Circuit Breaker shipped.
• Main Contact Resistance (Dc Milliohm Test): A low resistance micro ohm meter injects 100A dc across the closed contacts. Clean contacts show resistance typically below 50 micro ohms for SF6 breakers and below 30 micro ohms for vacuum breakers. Rising resistance indicates pitting or oxidation. When resistance doubles from baseline, contact replacement should be scheduled. Our factory recommends this test annually for critical breakers.
• Motion Analysis: Using a stroke sensor, we measure contact velocity during opening and closing. Adequate velocity (e.g., 2.5 m/s opening speed for 145kV breaker) ensures proper arc quenching. Slow velocity may indicate binding linkages or low gas pressure. Lugao Power Co.,Ltd. portable analyzers can perform this test without dismantling the breaker.
• Insulation Resistance and Dielectric Tests: Apply 1.5x rated voltage across open contacts and to ground. Any drop below 1kV per microfarad indicates contamination or moisture ingress. For SF6 breakers, gas moisture content must stay below 150 ppm by volume.

In addition to electrical tests, mechanical checks of operating mechanisms (spring charged, hydraulic, or pneumatic) are vital. Our factory designs modular actuator cartridges that can be swapped in under 2 hours, minimizing downtime. However, even the best mechanism fails if lubrication hardens. We recommend exercising the High Voltage Circuit Breaker (one open close operation) every 6 months during idle periods. This redistributes grease and polishes contacts.

From a cost benefit perspective, a single timing test costs around $300 to $800 per breaker, while replacing a failed High Voltage Circuit Breaker in an emergency can exceed $50,000 plus outage revenue losses. Moreover, utilities are increasingly adopting online monitoring systems that perform continuous timing and resistance analysis using fiber optic sensors. Our factory’s Smart Breaker package includes a permanent travel transducer and local display that warns operators when parameters drift. For example, if contact resistance rises from 40 to 70 micro ohms over 18 months, the system generates an alert for scheduled maintenance. This condition based approach extends life by up to 50 percent compared to time based replacement. To implement a robust testing program, our factory offers training for in house technicians and provides detailed test templates. Remember, a High Voltage Circuit Breaker that passes regular tests will protect your grid for three decades or more. At Lugao, we back this with a 25 year performance guarantee on our Premium series breakers.

Frequently Asked Questions (FAQ)

Question 1: Can a High Voltage Circuit Breaker clear a fault faster than a cycle, and why does speed matter for grid safety?

Answer: Yes, modern High Voltage Circuit Breakers clear faults in 1.5 to 2 cycles (25 to 33 milliseconds for 60Hz systems). Speed is critical because the longer a fault persists, the more thermal and mechanical stress is imposed on transformers, cables, and generators. A 100 millisecond delay can increase fault energy by 400 percent, leading to winding deformation in power transformers and potential fire. Furthermore, fast clearing prevents voltage dips from propagating through the grid, thus maintaining stability for nearby loads. Our factory’s 145kV SF6 High Voltage Circuit Breaker achieves a 2 cycle interruption time, meeting the most stringent utility requirements for transient stability.

Question 2: How often should a High Voltage Circuit Breaker be replaced, and what end of life signs should operators watch for?

Answer: A well maintained High Voltage Circuit Breaker typically lasts 25 to 40 years, depending on fault frequency and environmental conditions. End of life signs include: consistently high contact resistance (over 150 micro ohms for a 145kV breaker), abnormal noise during operation (grinding or delayed spring charge), visible external gas leakage (SF6 pressure drop below 0.4 MPa), and failure to meet timing specifications by more than 20 percent. Also, if the insulation resistance drops below 1000 megohms, dielectric integrity is compromised. Lugao Power Co.,Ltd. recommends a major overhaul after 10,000 mechanical operations or when predictive diagnostics show contact wear exceeding 80 percent. Partial discharge mapping can also detect internal defects before catastrophic failure.

Question 3: Why are SF6 High Voltage Circuit Breakers still widely used despite environmental concerns?

Answer: SF6 remains dominant because no other single gas matches its combination of high dielectric strength (3x that of air at the same pressure), excellent arc quenching capability, and thermal conductivity. For voltages above 72.5kV, SF6 offers the most compact and reliable solution. However, the industry is addressing the high global warming potential (GWP = 23,500) through improved gas handling practices: modern breakers have leakage rates below 0.1 percent per year, and recycling programs recapture SF6 at end of life. Moreover, new alternatives like g3 gas (fluoronitrile blend) reduce GWP by 98 percent while maintaining similar performance. Lugao Power Co.,Ltd. now offers a g3 ready High Voltage Circuit Breaker for environmentally sensitive projects, but for existing infrastructure, SF6 with leakage monitoring remains the most practical choice.

Question 4: Can a High Voltage Circuit Breaker be used for load switching daily, or is it only for fault protection?

Answer: Yes, many High Voltage Circuit Breakers are rated for daily load current switching (class C2 or higher). However, frequent load switching causes contact wear from arcing during each open operation, so breakers used for daily switching (e.g., capacitor banks or reactor switching) require higher electrical endurance (class E2) and possibly pre insertion resistors to limit overvoltages. For applications requiring thousands of switching operations per year, vacuum breakers are superior due to their extended electrical life. Our factory’s VUB vacuum High Voltage Circuit Breaker is specifically designed for daily switching up to 30,000 operations. Always consult the breaker’s duty class and avoid using a general purpose fault breaker for frequent load switching, as premature contact erosion will occur.

Question 5: What safety procedures must be followed before manually operating a High Voltage Circuit Breaker in a substation?

Answer: Before any manual operation, follow a five step safety protocol: 1) Obtain a switching order from the control center and verify the breaker’s position via SCADA. 2) De energize local control circuits and apply lockout tagout on the spring charging motor. 3) Verify with a voltage detector that both sides of the High Voltage Circuit Breaker are de energized or that the disconnect switches are open. 4) Wear arc rated PPE (cal/cm² suit, face shield, and voltage rated gloves). 5) Use a remote manual crank if the breaker has a manual charging handle, standing to the side to avoid arc blast. Never bypass interlocks or attempt to force a breaker that shows mechanical resistance. Lugao Power Co.,Ltd. provides a detailed safety video with every High Voltage Circuit Breaker delivery, reinforcing that operator safety is paramount.

Conclusion: Strengthen Your Grid Resilience With Our High Voltage Circuit Breakers

High Voltage Circuit Breakers are the frontline defenders of electrical grids, combining high speed mechanical action with sophisticated arc extinction physics. From preventing cascading blackouts to enabling renewable energy integration, their role cannot be overstated. As we have detailed, proper selection based on rated parameters, routine timing and contact resistance tests, and understanding quenching technologies are essential practices. Lugao Power Co.,Ltd. has been engineering and manufacturing High Voltage Circuit Breakers for four decades, delivering over 30,000 units to utilities and industries across 50 countries. Our factory uses robotic welding, SF6 leak testing down to 1e-6 mbarl/s, and full assembly factory acceptance tests according to IEC and ANSI standards.

Do not wait for a breaker failure to disrupt your operations. Contact our technical sales team today for a free substation protection audit. We will analyze your fault duty requirements, provide a complete High Voltage Circuit Breaker specification, and offer a demo of our Smart Breaker monitoring platform. Every purchase includes a one year on site commissioning and training package. Upgrade to safety, reliability, and peace of mind with Lugao Power Co.,Ltd. – your partner in power system protection. Request your quote now via our website or email directly to receive a product catalog and case studies from similar installations. Together, we will keep your grid safe.
