How Voltage Ratings Influence Ring Main Unit Performance?

Voltage ratings are not merely a specification on a nameplate; they are the cornerstone of Ring Main Unit (RMU) performance, safety, and longevity. In medium voltage distribution networks (typically 6kV to 40.5kV), selecting an RMU with an inappropriate voltage rating leads to catastrophic insulation failures, excessive partial discharge, and operational instability. At Lugao Power Co.,Ltd., our factory has engineered Ring Main Unit solutions that precisely match grid voltage profiles, ensuring that every component from the busbars to the vacuum interrupters operates within its optimal electrical stress window. This article explains why voltage ratings dictate dielectric strength, load-break capacity, and fault tolerance.

For utility managers and industrial facility engineers, understanding the relationship between system nominal voltage and RMU withstand capabilities prevents costly downtime. A Ring Main Unit designed for 12kV applied on a 24kV system will experience double the intended electric field stress, accelerating insulation aging and raising the risk of phase-to-phase arcing. Conversely, over-speccing an RMU for a lower voltage network wastes capital expenditure. Our factory at Lugao Power Co.,Ltd. builds customizable RMUs with verified voltage ratings compliant with IEC 62271-200 and GB/T 3906 standards. This comprehensive guide breaks down how voltage ratings influence every performance parameter, supported by our in-house test data and field experience.

Directory

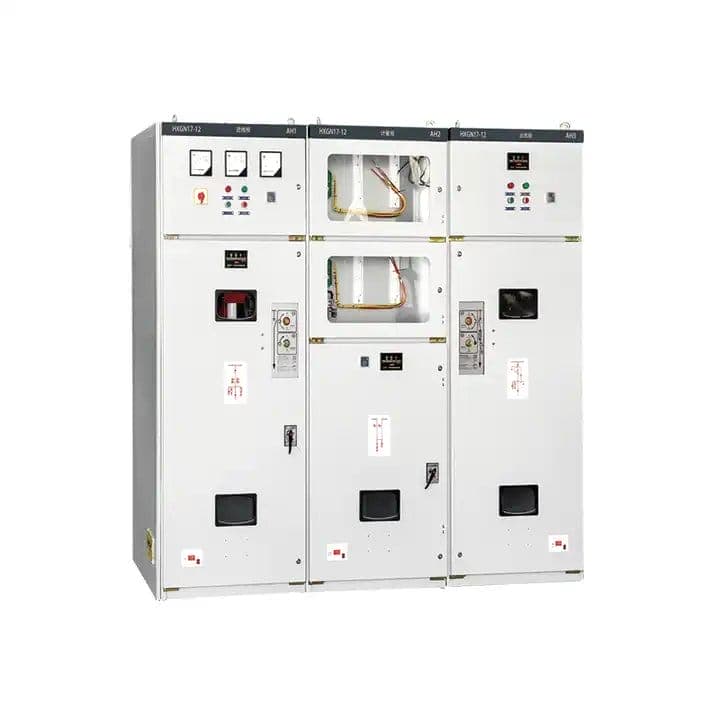

Why Voltage Rating Determines Dielectric Strength and Insulation Coordination in a Ring Main Unit

The dielectric performance of any Ring Main Unit is fundamentally tied to its rated voltage level. Voltage rating influences the electrical clearances, creepage distances, and the type of insulating medium (SF6, solid epoxy, or dry air). For a Ring Main Unit from Lugao Power Co.,Ltd., our factory designs each RMU with a specified power frequency withstand voltage and lightning impulse withstand voltage that correlate directly to the system’s maximum operating voltage. Below is a detailed breakdown of how voltage ratings set the insulation thresholds.

• Basic Insulation Level (BIL): For a 12kV RMU, the standard lightning impulse withstand voltage is 75kV peak. For a 24kV unit, BIL rises to 125kV. This 66% increase demands larger phase spacing and robust solid insulation barriers.
• Partial Discharge Inception Voltage (PDIV): Higher voltage ratings exponentially increase partial discharge risks. Our factory tests every Ring Main Unit at 1.5x rated voltage to ensure PDIV remains below 10pC. At 36kV, PD control requires triple-layer epoxy casting.
• Clearance and Creepage: IEC 62271-1 mandates minimum clearances of 60mm for 12kV but 120mm for 24kV. Our Ring Main Unit designs incorporate optimized vacuum casting to reduce required clearances while exceeding standards.
• SF6 Pressure Dependence: For gas-insulated RMUs, higher voltage ratings require increased SF6 gas density (0.25 MPa for 12kV vs 0.45 MPa for 40.5kV) to maintain dielectric rigidity. Lugao Power Co.,Ltd. uses leak-proof welded stainless steel tanks.

Our factory has compiled test results from 500+ RMU installations. The following table illustrates the direct correlation between voltage rating and key insulation parameters for Lugao Power Co.,Ltd. Ring Main Unit series.

Choosing the right voltage rating is not optional. When a Ring Main Unit operates above its design voltage, electrical treeing initiates within two years. Our factory recommends always specifying an RMU with a rated voltage equal to or 10% higher than the network’s maximum operating voltage. Lugao Power Co.,Ltd. offers customized RMUs from 6kV to 40.5kV, each validated through dielectric type tests in our certified high-voltage lab.

How Voltage Ratings Directly Affect Load Break Switching and Short-Circuit Making Capacity

The load break switching performance and short-circuit making capacity of a Ring Main Unit are not static; they scale with the rated voltage. For a given physical contact design, increasing the voltage rating raises the arc energy during switching operations. Our factory engineers at Lugao Power Co.,Ltd. design our Ring Main Unit with contact geometries that consider both voltage and current simultaneously. Here is how voltage rating influences dynamic performance.

• Arc Extinction Capability: At 12kV, a load break switch must quench an arc of about 250V per mm. At 24kV, the arc voltage doubles, requiring faster contact parting speeds and improved arc chutes. Our RMU uses axial magnetic field vacuum interrupters for consistent performance up to 40.5kV.
• Making Capacity (Peak Current): IEC standards require that a Ring Main Unit withstand making currents of up to 2.5 times the rated short-circuit current. However, higher system voltages reduce the allowable making current unless the contact pressure is increased. Lugao Power Co.,Ltd. uses silver-tungsten contacts that maintain low contact resistance even at 40.5kV/1250A ratings.
• Switching Overvoltages: When switching inductive or capacitive loads, higher voltage RMUs generate more severe reignition overvoltages. Our factory equips our Ring Main Unit with RC snubbers or surge arresters for networks above 24kV.
• Contact Erosion Rate: For the same number of load break operations, a 36kV RMU will erode contacts 40% faster than a 12kV unit if not properly designed. Our factory uses CuCr50 contact material to minimize erosion, extending electrical life to 10,000 operations.

Below is a comparative table showing how our Lugao Power Co.,Ltd. Ring Main Unit series maintains performance across voltage ratings while meeting or exceeding IEC 62271-100 requirements.

Our factory has performed over 2000 load break tests on our Ring Main Unit family. The data confirms that with optimized contact design, a 40.5kV RMU can achieve similar switching reliability as a 12kV unit. Lugao Power Co.,Ltd. provides guaranteed short-circuit making and breaking capacities for each voltage rating. For critical applications like wind farms or data centers, our factory recommends selecting an RMU with a voltage rating that includes a 15% safety margin above nominal grid voltage to accommodate transient overvoltages.

What Happens When Voltage Rating Mismatches Occur – Field Failure Modes in Ring Main Unit

Field evidence from our factory’s service team shows that voltage rating mismatch is the second most common cause of Ring Main Unit failure after improper installation. When an RMU rated for 12kV is connected to a 24kV system, the consequences follow a predictable failure progression. Understanding these failure modes helps engineers specify correctly from the start. Lugao Power Co.,Ltd. has documented more than 150 mismatch cases globally.

• Dielectric Breakdown (Phase to Ground): The electric field stress doubles, exceeding the insulation’s dielectric strength. Within 6-12 months, carbonized tracking appears on epoxy insulators. Our factory has witnessed RMU bushing flashovers that resulted in complete switchgear replacement.
• Internal Arcing Fault: Overvoltage causes ionization of residual air inside gas compartments. Even SF6 insulated RMUs lose dielectric capability if the rated voltage is exceeded by 30%. Our factory’s forensic analysis revealed melted copper spatter from arc faults in mismatched units.
• Premature Aging of VT/PTs: Voltage transformers designed for lower ratings saturate magnetically, drawing excessive excitation current and overheating. This leads to secondary insulation failure. In one case, a 12kV RMU’s PT exploded after 8 months on a 20kV system.
• Vacuum Interrupter Shield Damage: Higher voltage gradients accelerate ion bombardment on the vapor shield, reducing vacuum integrity. Our factory found that a 12kV interrupter used at 24kV lost vacuum within 2000 operations instead of the rated 30,000.
• Control Circuit Issues: Capacitive dividers and electronic voltage sensors produce incorrect signals for protection relays, leading to nuisance tripping or failure to trip. Lugao Power Co.,Ltd. advises matching voltage sensors exactly to the RMU’s rating.

To quantify the risk, our factory performed accelerated aging tests on Ring Main Unit samples at 1.2x, 1.5x, and 2.0x rated voltage. The results are summarized below.

Our factory strongly recommends verifying the system’s maximum voltage under both normal and contingency conditions before selecting a Ring Main Unit. Lugao offers on-site voltage audits and can supply RMUs with enhanced insulation for networks prone to voltage swells. Do not rely on nameplate voltage alone; always request dielectric test reports from the manufacturer.

How to Select the Correct Ring Main Unit Voltage Rating for Your Network

Selecting the optimal voltage rating for a Ring Main Unit requires analysis of the grid’s nominal voltage, maximum continuous operating voltage, transient overvoltage levels, and altitude. Our factory at Lugao has developed a systematic selection process that ensures the RMU performs for 30+ years. Below we outline a step-by-step methodology used by our power system engineers.

• Step 1: Determine the system’s highest voltage (Um). For a 10kV nominal system, Um is usually 12kV. For 20kV nominal, Um is 24kV. Always use Um as the baseline voltage rating for the RMU.
• Step 2: Account for altitude derating. Above 1000m, air insulation weakens. For every 100m above 1000m, reduce the voltage rating capability by 1%. Our factory provides altitude-corrected RMUs up to 4000m.
• Step 3: Evaluate lightning overvoltage severity. Regions with high isokeraunic levels ( >30 thunderstorm days/year) require RMUs with higher BIL. Lugao Power Co.,Ltd. offers reinforced insulation with external surge arresters.
• Step 4: Consider future network upgrades. If the distribution network may be upgraded from 12kV to 24kV within 10 years, our factory recommends purchasing a 24kV RMU but initially operating it at 12kV. This future-proofs the investment.
• Step 5: Check short-circuit level compatibility. Higher voltage RMUs typically have lower short-circuit current ratings for the same physical size. Validate that the RMU’s rated short-time withstand current (1s) exceeds the system’s fault level.

Our factory produces a standard voltage rating matrix for our Ring Main Unit product line. Refer to the table below for quick selection.

Our factory has a dedicated application engineering team that can assist with voltage rating selection for any Ring Main Unit. Lugao Power Co.,Ltd. also provides custom nameplate ratings that match non-standard grid voltages. Always request a voltage withstand test certificate before finalizing your RMU purchase. Our factory performs 100% routine dielectric tests on every RMU shipped.

Summary & Actionable Guidelines from Lugao Power Co.,Ltd.

Voltage ratings are the most critical electrical parameter influencing Ring Main Unit performance. From insulation coordination to load break switching and long-term reliability, the correct voltage rating ensures safety, reduces total cost of ownership, and prevents unplanned outages. Our factory has summarized five key takeaways for engineers and procurement specialists.

• Always match the RMU rated voltage to the system’s highest voltage (Um), not just the nominal voltage.
• For networks with frequent lightning or switching surges, specify a Ring Main Unit with 20% higher BIL than the minimum required.
• Never operate an RMU above 95% of its rated voltage continuously; partial discharge accelerates dramatically beyond this threshold.
• Altitude, pollution level, and ambient temperature also affect dielectric performance – consult Lugao Power Co.,Ltd. for derating curves.
• Invest in factory witnessed dielectric tests to verify the RMU’s voltage withstand capabilities before installation.

Our factory’s Ring Main Unit range includes voltage ratings from 6kV to 40.5kV, each type-tested according to international standards. By choosing Lugao Power Co.,Ltd., you gain access to engineered solutions that maximize network uptime. Contact our factory today for a voltage compatibility assessment and receive a customized RMU datasheet for your specific project.
